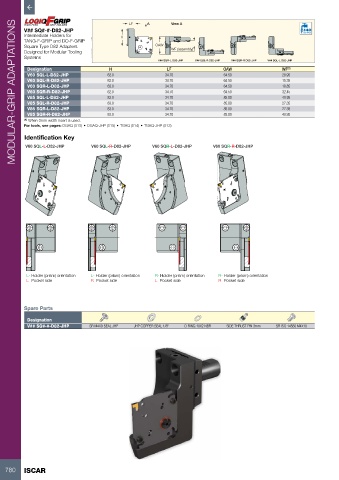

Page 782 - ISCAR(TURNING-CATALOG-42-2022)

LF A View A
MODULAR-GRIP ADAPTATIONS
V## SQ#-#-D82-JHP
Intermediate Holders for H Bar Max
TANG-F-GRIP and DO-F-GRIP
Square Type D82 Adapters OAW WF (assembly)
Designed for Modular Tooling
Systems
V## SQR-L D82-JHP V## SQL-R D82-JHP V## SQR-R D82-JHP V## SQL-L D82-JHP
Designation H LF OAW WF (1)
V60 SQL-L-D82-JHP 62.0 34.70 64.50 28.95
V60 SQL-R-D82-JHP 62.0 34.70 64.50 15.35
V60 SQR-L-D82-JHP 62.0 34.70 64.50 18.85
V60 SQR-R-D82-JHP 62.0 34.70 64.50 32.45
V85 SQL-L-D82-JHP 83.0 34.70 85.00 40.95
V85 SQL-R-D82-JHP 83.0 34.70 85.00 27.35
V85 SQR-L-D82-JHP 83.0 34.70 85.00 27.35
V85 SQR-R-D82-JHP 83.0 34.70 85.00 40.95
(1) When 3mm width insert is used.
For tools, see pages: DGAQ (515) • DGAQ-JHP (515) • TGAQ (514) • TGAQ-JHP (513)
Identification Key

V60 SQL-L-D82-JHP V60 SQL-R-D82-JHP V60 SQR-L-D82-JHP V60 SQR-R-D82-JHP

L- Holder (prism) orientation L- Holder (prism) orientation R- Holder (prism) orientation R- Holder (prism) orientation
L- Pocket side R- Pocket side L- Pocket side R- Pocket side

Spare Parts

Designation
V## SQ#-#-D82-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" O-RING 10X2 NBR SIDE THRUST PIN 3mm SR ISO 14580 M4X10
