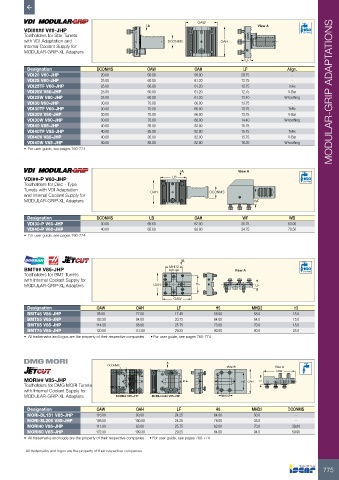

Page 777 - ISCAR(TURNING-CATALOG-42-2022)

OAW
VDI#### V##-JHP A View A 150
Toolholders for Star Turrets Bar Max
with VDI Adaptation and DCONMS OAH
DCONMS
Internal Coolant Supply for
MODULAR-GRIP-XL Adapters
LF
Designation DCONMS OAW OAH LF Align.
VDI20 V60-JHP 20.00 60.00 56.00 28.75 -
VDI25 V60-JHP 25.00 60.00 61.20 12.75 -
VDI25TF V60-JHP 25.00 60.00 61.20 12.75 TriFix
VDI25V V60-JHP 25.00 60.00 61.20 12.75 V-Bar MODULAR-GRIP ADAPTATIONS
VDI25W V60-JHP 25.00 60.00 61.20 13.40 W-toothing
VDI30 V60-JHP 30.00 70.00 66.00 13.75 -
VDI30TF V60-JHP 30.00 70.00 66.00 13.75 TriFix
VDI30V V60-JHP 30.00 70.00 66.00 13.75 V-Bar
VDI30W V60-JHP 30.00 70.00 66.00 14.40 W-toothing
VDI40 V85-JHP 40.00 85.00 82.00 15.75 -
VDI40TF V85-JHP 40.00 85.00 82.00 15.75 TriFix
VDI40V V85-JHP 40.00 85.00 82.00 15.75 V-Bar
VDI40W V85-JHP 40.00 85.00 82.00 16.35 W-toothing
• For user guide, see pages 760-774

A View A

VDI##-P V60-JHP LB 150
Toolholders for Disc - Type Bar Max
Turrets with VDI Adaptation OAH DCONMS
and Internal Coolant Supply for
MODULAR-GRIP-XL Adapters WF

Designation DCONMS LB OAH WF WB
VDI30-P V60-JHP 30.00 65.60 62.00 30.75 63.00
VDI40-P V60-JHP 40.00 65.60 80.00 34.75 70.50
• For user guide, see pages 760-774

A
BMT## V85-JHP MHD2 View A 150
h3
Bar Max
Toolholders for BMT Turrets
with Internal Coolant Supply for
MODULAR-GRIP-XL Adapters OAH H5 LF
OAW
Designation OAW OAH LF H5 MHD2 h3
BMT45 V85-JHP 95.00 77.00 17.45 58.00 58.0 15.0
BMT55 V85-JHP 103.50 84.00 20.75 64.00 64.0 15.0
BMT65 V85-JHP 114.50 98.00 25.75 73.00 70.0 18.0
BMT75 V85-JHP 120.00 112.00 29.25 90.00 90.0 25.0
• All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774

DCONMS A
View B View A
OAW
MORI## V85-JHP B H5 OAH LF
Toolholders for DMG MORI Turrets
with Internal Coolant Supply for
MODULAR-GRIP-XL Adapters MORI## V85-JHP MORI-#L### V85-JHP MHD2

Designation OAW OAH LF H5 MHD2 DCONMS
MORI-DL151 V85-JHP 116.00 90.00 24.25 64.00 30.0 -
MORI-SL200 V85-JHP 126.00 100.00 24.25 76.00 35.0 -
MORI40 V85-JHP 111.00 83.00 25.75 62.00 70.0 39.90
MORI60 V85-JHP 172.00 109.30 29.25 84.00 94.0 59.90
• All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774
