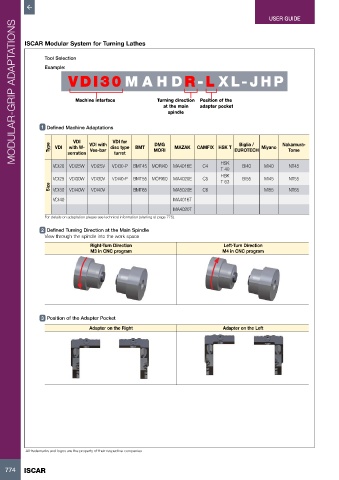

Page 776 - ISCAR(TURNING-CATALOG-42-2022)

USER GUIDE
MODULAR-GRIP ADAPTATIONS

ISCAR Modular System for Turning Lathes

Tool Selection
Example:
VDI30 MAHD R - L XL -JHP
VDI30 MAHD R - L XL-JHP

Machine interface Turning direction Position of the
at the main adapter pocket
spindle

1 Defined Machine Adaptations

VDI VDI with VDI for DMG Biglia / Nakamura-
Type VDI serration Vee-bar disc type BMT MORI MAZAK CAMFIX HSK T EUROTECH Miyano Tome
with W-
turret
HSK
VDI20 VDI25W VDI25V VDI30-P BMT45 MORI40 MA4016E C4 BI40 MI40 NT45
T 40
HSK
VDI25 VDI30W VDI30V VDI40-P BMT55 MORI60 MA4020E C5 T 63 BI55 MI45 NT55
Size VDI30 VDI40W VDI40V BMT65 MA5020E C6 MI55 NT65

VDI40 MA4016T
MA4020T
For details on adaptation please see technical information (starting at page 775).

2 Defined Turning Direction at the Main Spindle
View through the spindle into the work space
Right-Turn Direction Left-Turn Direction
M3 in CNC program M4 in CNC program

3 Position of the Adapter Pocket
Adapter on the Right Adapter on the Left

All trademarks and logos are the property of their respective companies
