·                                                                    USER GUIDE

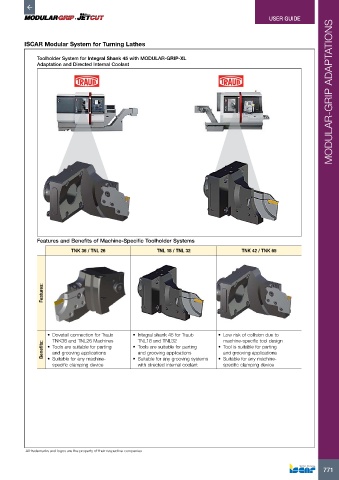

          ISCAR Modular System for Turning Lathes

              Toolholder System for Integral Shank 45 with MODULAR-GRIP-XL
              Adaptation and Directed Internal Coolant                                                                MODULAR-GRIP ADAPTATIONS




































              Features and Benefits of Machine-Specific Toolholder Systems
                          TNK 36 / TNL 26               TNL 18 / TNL 32               TNK 42 / TNK 65






                Features:









                  •  Dovetail connection for Traub   •  Integral shank 45 for Traub   •  Low risk of collision due to
                   TNK36 and TNL26 Machines      TNL18 and TNL32               machine-specific tool design
                Benefits:  •  Tools are suitable for parting   •  Tools are suitable for parting   •  Tool is suitable for parting
                                                 and grooving applications
                                                                               and grooving applications
                   and grooving applications
                  •  Suitable for any machine-
                                                 with directed internal coolant
                   specific clamping device     •  Suitable for any grooving systems   •  Suitable for any machine-
                                                                               specific clamping device













          All trademarks and logos are the property of their respective companies
