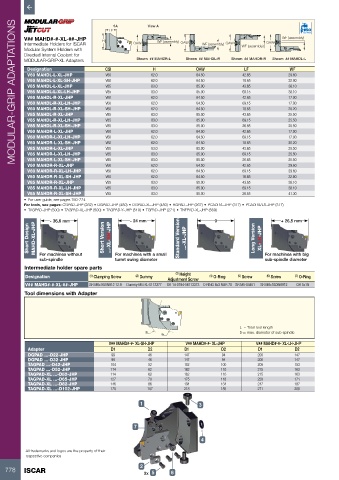

Page 780 - ISCAR(TURNING-CATALOG-42-2022)

MODULAR-GRIP ADAPTATIONS
A View A
LF 150
Bar Max
V## MAHD#-#-XL-##-JHP H WF (assembly)
Intermediate Holders for ISCAR OAW WF (assembly) OAW WF (assembly) OAW WF (assembly) OAW
Modular System Holders with
Directed Internal Coolant for
MODULAR-GRIP-XL Adapters Shown ## MAHDR-L Shown ## MAHDL-R Shown ## MAHDR-R Shown ## MAHDL-L
Designation CSI H OAW LF WF
V60 MAHDL-L-XL-JHP V60 62.0 64.50 42.65 29.60
V60 MAHDL-L-XL-SH-JHP V60 62.0 64.50 18.65 32.80
V85 MAHDL-L-XL-JHP V85 83.0 85.00 43.65 38.10
V85 MAHDL-L-XL-LH-JHP V85 83.0 85.00 69.15 38.10
V60 MAHDL-R-XL-JHP V60 62.0 64.50 42.65 17.00
V60 MAHDL-R-XL-LH-JHP V60 62.0 64.50 69.15 17.00
V60 MAHDL-R-XL-SH-JHP V60 62.0 64.50 18.65 20.20
V85 MAHDL-R-XL-JHP V85 83.0 85.00 43.65 25.50
V85 MAHDL-R-XL-LH-JHP V85 83.0 85.00 69.15 25.50
V85 MAHDL-R-XL-SH-JHP V85 83.0 85.00 26.65 25.50
V60 MAHDR-L-XL-JHP V60 62.0 64.50 42.65 17.00
V60 MAHDR-L-XL-LH-JHP V60 62.0 64.50 69.15 17.00
V60 MAHDR-L-XL-SH-JHP V60 62.0 64.50 18.65 20.20
V85 MAHDR-L-XL-JHP V85 83.0 85.00 43.65 25.50
V85 MAHDR-L-XL-LH-JHP V85 83.0 85.00 69.15 25.50
V85 MAHDR-L-XL-SH-JHP V85 83.0 85.00 26.65 25.50
V60 MAHDR-R-XL-JHP V60 62.0 64.50 42.65 29.60
V60 MAHDR-R-XL-LH-JHP V60 62.0 64.50 69.15 29.60
V60 MAHDR-R-XL-SH-JHP V60 62.0 64.50 18.65 32.80
V85 MAHDR-R-XL-JHP V85 83.0 85.00 43.65 38.10
V85 MAHDR-R-XL-LH-JHP V85 83.0 85.00 69.15 38.10
V85 MAHDR-R-XL-SH-JHP V85 83.0 85.00 26.65 41.30
• For user guide, see pages 760-774
For tools, see pages: CGPAD-JHP (282) • DGPAD-JHP (480) • DGPAD-XL-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317)
• TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGPAD-JHP (271) • TNFPAD-XL-JHP (569)
- 36,6 mm - 24 mm 0 + 26,5 mm
Short Design MAHD-XL-JHP Short Version ...-XL-SH-JHP 46 Standard Version ...-XL-JHP Long Version XL-LH-JHP

For machines without
1
sub-spindle For machines with a small For machines with big
sub-spindle diameter
turret swing diameter
h 43
Intermediate holder spare parts
1 (3) Height
Designation (1) Clamping Screw (2) Dummy (4) O-Ring (5) Screw (6) Screw (7) O-Ring
Adjustment Screw
V## MAHD#-#-XL-##-JHP SR M6x16DIN912 12.9 Dummy-MG-XL-5113377 SR 14-0194-56113373 O RING 8x3 NBR 70 SR M5-04451 SR M6x10DIN6912 OR 5x1N
Tool dimensions with Adapter
f
b
L = Total tool length
D1 D1= max. diameter of sub-spindle
D2
V## MAHD#-#- XL-SH-JHP V## MAHD#-#- XL-JHP V## MAHD#-#- XL-LH-JHP
Adapter D1 D2 D1 D2 D1 D2
DGPAD …-D22-JHP 99 46 147 94 200 147
DGPAD …-D32-JHP 99 46 147 94 200 147
TAGPAD …-D42-JHP 104 52 152 100 205 153
TAGPAD …-D52-JHP 114 62 162 110 215 163
TAGPAD-XL …-D52-JHP 114 62 162 110 215 163
TAGPAD-XL …-D65-JHP 127 70 175 118 228 171
TAGPAD-XL …-D82-JHP 146 86 194 134 247 187
TAGPAD-XL …-D102-JHP 170 107 218 155 271 208

1 3

7

4
All trademarks and logos are the property of their
respective companies

2
778 ISCAR 3x 5 6
