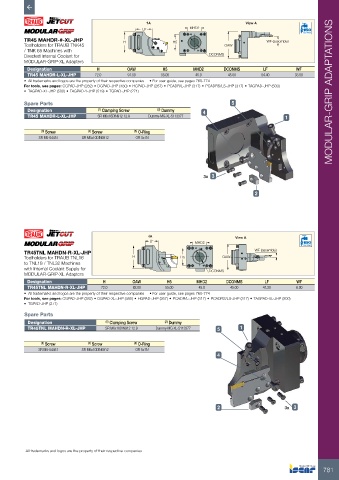

A View A
LF MHD2 150
Bar Max
TR45 MAHDR-#-XL-JHP H H5 WF (assembly)
Toolholders for TRAUB TNK45 OAW
/ TNK 65 Machines with
Directed Internal Coolant for DCONMS
MODULAR-GRIP-XL Adapters
Designation H OAW H5 MHD2 DCONMS LF WF
TR45 MAHDR-L-XL-JHP 72.0 91.50 55.00 45.0 45.00 54.40 33.50
• All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774
For tools, see pages: CGPAD-JHP (282) • DGPAD-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317) • TAGPAD-JHP (500)
• TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGPAD-JHP (271) MODULAR-GRIP ADAPTATIONS
Spare Parts 5
Designation (1) Clamping Screw (2) Dummy 4
TR45 MAHDR-L-XL-JHP SR M6x16DIN912 12.9 Dummy-MG-XL-5113377 1

(3) Screw (4) Screw (5) O-Ring
SR M5-04451 SR M6x10DIN6912 OR 5x1N

3x 3

2

A View A
LF MHD2 150
Bar Max
TR45TNL MAHDN-R-XL-JHP WF (assembly)
Toolholders for TRAUB TNL16 H H5 OAW
to TNL18 / TNL32 Machines
with Internal Coolant Supply for DCONMS
MODULAR-GRIP-XL Adapters
Designation H OAW H5 MHD2 DCONMS LF WF
TR45TNL MAHDN-R-XL-JHP 72.0 82.00 55.00 45.0 45.00 41.30 6.00
• All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774
For tools, see pages: CGPAD-JHP (282) • DGPAD-XL-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317) • TAGPAD-XL-JHP (500)
• TGPAD-JHP (271)
Spare Parts
Designation (1) Clamping Screw (2) Dummy
TR45TNL MAHDN-R-XL-JHP SR M6x16DIN912 12.9 Dummy-MG-XL-5113377 5 1

(3) Screw (4) Screw (5) O-Ring
SR M5-04451 SR M6x10DIN6912 OR 5x1N
4

2 3x 3

All trademarks and logos are the property of their respective companies
