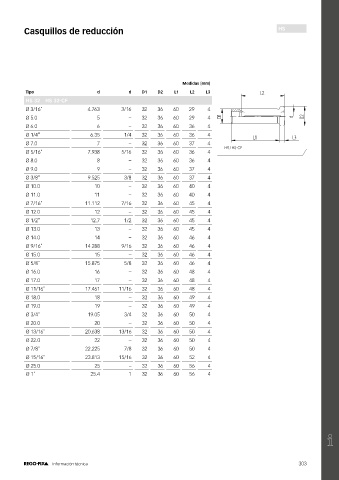

Casquillos de reducción HS

Medidas [mm]
Tipo d d D1 D2 L1 L2 L3 L2
HS 32 HS 32-CF
Ø 3/16" 4.763 3/16 32 36 60 29 4
Ø 5.0 5 – 32 36 60 29 4 D1 d D2
Ø 6.0 6 – 32 36 60 36 4
Ø 1/4" 6.35 1/4 32 36 60 36 4 L1 L3
Ø 7.0 7 – 32 36 60 37 4
HS / HS-CF
Ø 5/16" 7.938 5/16 32 36 60 36 4
Reduzierhülsen HS12bis32__S13_9_Skizze1
Ø 8.0 8 – 32 36 60 36 4
Ø 9.0 9 – 32 36 60 37 4 Schraffurfaktor 1
Ø 3/8" 9.525 3/8 32 36 60 37 4 Skizzenfaktor 0.75
Ø 10.0 10 – 32 36 60 40 4 Schriftfaktor 0.7
Ø 11.0 11 – 32 36 60 40 4
Ø 7/16" 11.112 7/16 32 36 60 45 4
Ø 12.0 12 – 32 36 60 45 4
Ø 1/2" 12.7 1/2 32 36 60 45 4
Ø 13.0 13 – 32 36 60 45 4
Ø 14.0 14 – 32 36 60 46 4
Ø 9/16" 14.288 9/16 32 36 60 46 4
Ø 15.0 15 – 32 36 60 46 4
Ø 5/8" 15.875 5/8 32 36 60 46 4
Ø 16.0 16 – 32 36 60 48 4
Ø 17.0 17 – 32 36 60 48 4
Ø 11/16" 17.461 11/16 32 36 60 48 4
Ø 18.0 18 – 32 36 60 49 4
Ø 19.0 19 – 32 36 60 49 4
Ø 3/4" 19.05 3/4 32 36 60 50 4
Ø 20.0 20 – 32 36 60 50 4
Ø 13/16" 20.638 13/16 32 36 60 50 4
Ø 22.0 22 – 32 36 60 50 4
Ø 7/8" 22.225 7/8 32 36 60 50 4
Ø 15/16" 23.813 15/16 32 36 60 52 4
Ø 25.0 25 – 32 36 60 56 4
Ø 1" 25.4 1 32 36 60 56 4
