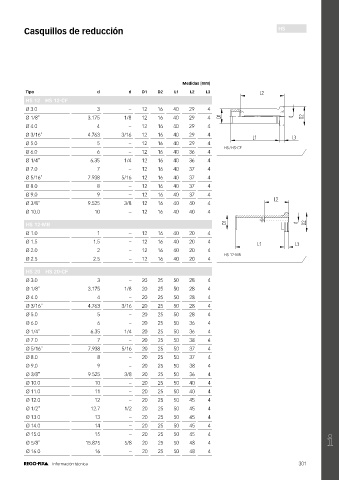

Casquillos de reducción HS

Medidas [mm]
Tipo d d D1 D2 L1 L2 L3 L2
HS 12 HS 12-CF
Ø 3.0 3 – 12 16 40 29 4
Ø 1/8" 3.175 1/8 12 16 40 29 4 D1 d D2
Ø 4.0 4 – 12 16 40 29 4
Ø 3/16" 4.763 3/16 12 16 40 29 4
L1 L3
Ø 5.0 5 – 12 16 40 29 4
HS / HS-CF
Ø 6.0 6 – 12 16 40 36 4
Reduzierhülsen HS12bis32__S13_9_Skizze1
Ø 1/4" 6.35 1/4 12 16 40 36 4
Ø 7.0 7 – 12 16 40 37 4 Schraffurfaktor 1
Ø 5/16" 7.938 5/16 12 16 40 37 4 Skizzenfaktor 0.75
Ø 8.0 8 – 12 16 40 37 4 Schriftfaktor 0.7
Ø 9.0 9 – 12 16 40 37 4
L2
Ø 3/8" 9.525 3/8 12 16 40 40 4
Ø 10.0 10 – 12 16 40 40 4
HS 12-MB D1 d D2
Ø 1.0 1 – 12 16 40 20 4
Ø 1.5 1.5 – 12 16 40 20 4 L1 L3
Ø 2.0 2 – 12 16 40 20 4
HS 12-MB
Ø 2.5 2.5 – 12 16 40 20 4
Reduzierhülsen HS12MB__S13_9_Skizze2
HS 20 HS 20-CF Schraffurfaktor 1
Ø 3.0 3 – 20 25 50 28 4
Skizzenfaktor 0.75
Ø 1/8" 3.175 1/8 20 25 50 28 4
Schriftfaktor 0.7
Ø 4.0 4 – 20 25 50 28 4
Ø 3/16" 4.763 3/16 20 25 50 28 4
Ø 5.0 5 – 20 25 50 28 4
Ø 6.0 6 – 20 25 50 36 4
Ø 1/4" 6.35 1/4 20 25 50 36 4
Ø 7.0 7 – 20 25 50 38 4
Ø 5/16" 7.938 5/16 20 25 50 37 4
Ø 8.0 8 – 20 25 50 37 4
Ø 9.0 9 – 20 25 50 38 4
Ø 3/8" 9.525 3/8 20 25 50 36 4
Ø 10.0 10 – 20 25 50 40 4
Ø 11.0 11 – 20 25 50 40 4
Ø 12.0 12 – 20 25 50 45 4
Ø 1/2" 12.7 1/2 20 25 50 45 4
Ø 13.0 13 – 20 25 50 45 4
Ø 14.0 14 – 20 25 50 45 4
Ø 15.0 15 – 20 25 50 45 4
Ø 5/8" 15.875 5/8 20 25 50 48 4
Ø 16.0 16 – 20 25 50 48 4

Información técnica 301
