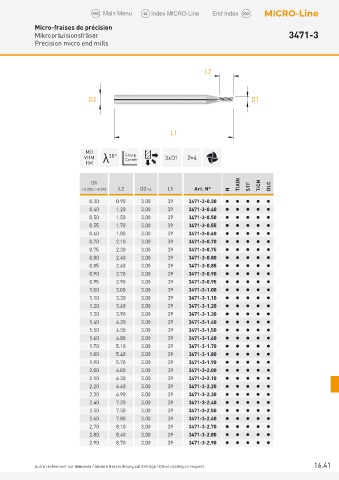

Micro-fraises de précision
Mikropräzisionsfräser 3471-3
Precision micro end mills

L2

D2 D1

L1

MD
VHM λ 30° Sharp 3xD1 Z=4
Corner
HM
D1 TiAlN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF TiCN DLC
0.30 0.90 3.00 39 3471-3-0.30     
0.40 1.20 3.00 39 3471-3-0.40     
0.50 1.50 3.00 39 3471-3-0.50     
0.55 1.70 3.00 39 3471-3-0.55     
0.60 1.80 3.00 39 3471-3-0.60     
0.70 2.10 3.00 39 3471-3-0.70     
0.75 2.30 3.00 39 3471-3-0.75     
0.80 2.40 3.00 39 3471-3-0.80     
0.85 2.60 3.00 39 3471-3-0.85     
0.90 2.70 3.00 39 3471-3-0.90     
0.95 2.90 3.00 39 3471-3-0.95     
1.00 3.00 3.00 39 3471-3-1.00     
1.10 3.30 3.00 39 3471-3-1.10     
1.20 3.60 3.00 39 3471-3-1.20     
1.30 3.90 3.00 39 3471-3-1.30     
1.40 4.20 3.00 39 3471-3-1.40     
1.50 4.50 3.00 39 3471-3-1.50     
1.60 4.80 3.00 39 3471-3-1.60     
1.70 5.10 3.00 39 3471-3-1.70     
1.80 5.40 3.00 39 3471-3-1.80     
1.90 5.70 3.00 39 3471-3-1.90     
2.00 6.00 3.00 39 3471-3-2.00     
2.10 6.30 3.00 39 3471-3-2.10     
2.20 6.60 3.00 39 3471-3-2.20     
2.30 6.90 3.00 39 3471-3-2.30     
2.40 7.20 3.00 39 3471-3-2.40     
2.50 7.50 3.00 39 3471-3-2.50     
2.60 7.80 3.00 39 3471-3-2.60     
2.70 8.10 3.00 39 3471-3-2.70     
2.80 8.40 3.00 39 3471-3-2.80     
2.90 8.70 3.00 39 3471-3-2.90     

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.41
