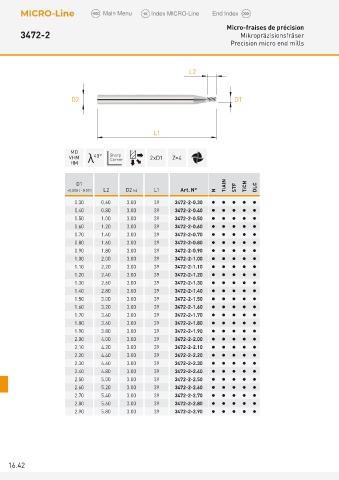

Micro-fraises de précision
3472-2 Mikropräzisionsfräser
Precision micro end mills

L2

D2 D1

L1

MD
VHM λ 40° Sharp 2xD1 Z=4
Corner
HM
D1 TiAlN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF TiCN DLC
0.30 0.60 3.00 39 3472-2-0.30     
0.40 0.80 3.00 39 3472-2-0.40     
0.50 1.00 3.00 39 3472-2-0.50     
0.60 1.20 3.00 39 3472-2-0.60     
0.70 1.40 3.00 39 3472-2-0.70     
0.80 1.60 3.00 39 3472-2-0.80     
0.90 1.80 3.00 39 3472-2-0.90     
1.00 2.00 3.00 39 3472-2-1.00     
1.10 2.20 3.00 39 3472-2-1.10     
1.20 2.40 3.00 39 3472-2-1.20     
1.30 2.60 3.00 39 3472-2-1.30     
1.40 2.80 3.00 39 3472-2-1.40     
1.50 3.00 3.00 39 3472-2-1.50     
1.60 3.20 3.00 39 3472-2-1.60     
1.70 3.40 3.00 39 3472-2-1.70     
1.80 3.60 3.00 39 3472-2-1.80     
1.90 3.80 3.00 39 3472-2-1.90     
2.00 4.00 3.00 39 3472-2-2.00     
2.10 4.20 3.00 39 3472-2-2.10     
2.20 4.40 3.00 39 3472-2-2.20     
2.30 4.60 3.00 39 3472-2-2.30     
2.40 4.80 3.00 39 3472-2-2.40     
2.50 5.00 3.00 39 3472-2-2.50     
2.60 5.20 3.00 39 3472-2-2.60     
2.70 5.40 3.00 39 3472-2-2.70     
2.80 5.60 3.00 39 3472-2-2.80     
2.90 5.80 3.00 39 3472-2-2.90     
