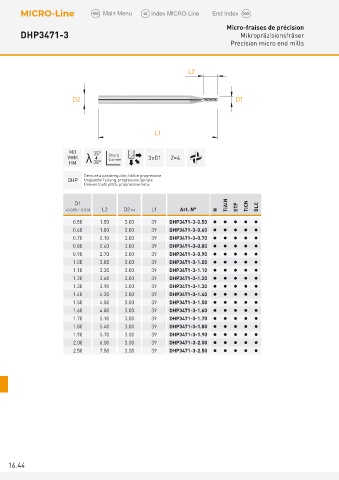

Page 846 - 25-053 APPLITEC catalogue 2025.indb

MICRO-Line Main Menu Index MICRO-Line End Index

Micro-fraises de précision
DHP3471-3 Mikropräzisionsfräser
Precision micro end mills

L2

D2 D1

L1

MD 35°
VHM Sharp 3xD1 Z=4
Corner
HM λ 38°
Denture à pas irrégulier, hélice progressive
DHP Ungleiche Teilung, progressive Spirale
Uneven tooth pitch, progressive helix
D1 TiAlN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF TiCN DLC
0.50 1.50 3.00 39 DHP3471-3-0.50     
0.60 1.80 3.00 39 DHP3471-3-0.60     
0.70 2.10 3.00 39 DHP3471-3-0.70     
0.80 2.40 3.00 39 DHP3471-3-0.80     
0.90 2.70 3.00 39 DHP3471-3-0.90     
1.00 3.00 3.00 39 DHP3471-3-1.00     
1.10 3.30 3.00 39 DHP3471-3-1.10     
1.20 3.60 3.00 39 DHP3471-3-1.20     
1.30 3.90 3.00 39 DHP3471-3-1.30     
1.40 4.20 3.00 39 DHP3471-3-1.40     
1.50 4.50 3.00 39 DHP3471-3-1.50     
1.60 4.80 3.00 39 DHP3471-3-1.60     
1.70 5.10 3.00 39 DHP3471-3-1.70     
1.80 5.40 3.00 39 DHP3471-3-1.80     
1.90 5.70 3.00 39 DHP3471-3-1.90     
2.00 6.00 3.00 39 DHP3471-3-2.00     
2.50 7.50 3.00 39 DHP3471-3-2.50     

16.44
