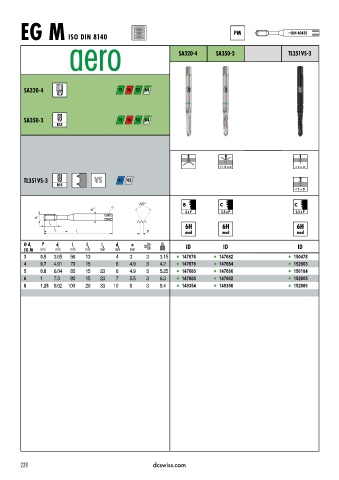

PM DIN 40435
EG M ISO DIN 8140 ~

SA320 4 SA350 3 TL351VS 3

SA320-4 15 16 52

SA350-3 15 16 52
R15

< 1.5 x D < 2 x D

TL351VS-3 VS 41 42
R15
< 2 x D

B C C
a
d 2
4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID
EG M mm mm mm mm mm mm mm
3 0.5 3.65 56 13 4 3 3 3.15 l 147676 l 147682 l 150478
4 0.7 4.91 70 15 6 4.9 3 4.2 l 147678 l 147684 l 152003
5 0.8 6.04 80 15 23 6 4.9 3 5.25 l 147680 l 147686 l 150184
6 1 7.3 80 15 23 7 5.5 3 6.3 l 147688 l 147692 l 152005
8 1.25 9.62 100 20 33 10 8 3 8.4 l 149354 l 149356 l 152089
