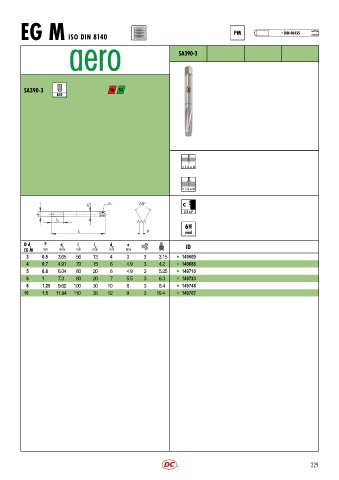

Page 232 - DC_SWISS(Catalogue_TM_ES-EN)

PM DIN 40435
EG M ISO DIN 8140 ~

SA390 3

SA390-3 16 53
R10

< 1.5 x D

< 1.5 x D

C
2.5 x P

P

Ø d 1 P d 1 l 1 l 2 d 2 a ID
EG M mm mm mm mm mm mm
3 0.5 3.65 56 13 4 3 3 3.15 l 149669
4 0.7 4.91 70 15 6 4.9 3 4.2 l 149688
5 0.8 6.04 80 20 6 4.9 3 5.25 l 149710
6 1 7.3 80 20 7 5.5 3 6.3 l 149723
8 1.25 9.62 100 30 10 8 3 8.4 l 149748
10 1.5 11.94 110 35 12 9 3 10.4 l 149767
