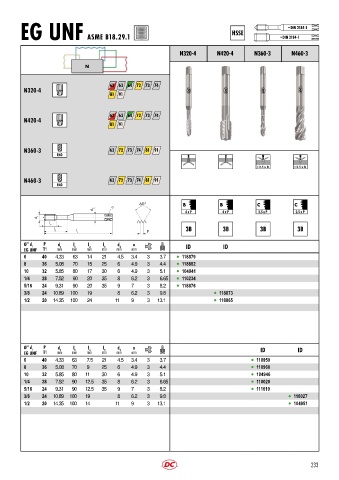

Page 236 - DC_SWISS(Catalogue_TM_ES-EN)

~ DIN 2184-1
HSSE
EG UNF ASME B18.29.1 ~ DIN 2184-1

N320 4 N420 4 N360 3 N460 3

N

62 63 72 73 74
N320-4
81 91

62 63 72 73 74
N420-4
81 91

N360-3 63 72 73 74 81 91
R40

< 2.5 x D < 2.5 x D

N460-3 63 72 73 74 81 91
R40

B B C C
a
d 2
4 x P 4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID
EG UNF TPI mm mm mm mm mm mm
6 40 4.33 63 14 21 4.5 3.4 3 3.7 l 118879
8 36 5.08 70 15 25 6 4.9 3 4.4 l 118882
10 32 5.85 80 17 30 6 4.9 3 5.1 l 104941
1/4 28 7.52 90 20 35 8 6.2 3 6.65 l 110234
5/16 24 9.31 90 20 35 9 7 3 8.2 l 118876
3/8 24 10.89 100 19 8 6.2 3 9.8 l 118873
1/2 20 14.35 100 24 11 9 3 13.1 l 118865

Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID
EG UNF TPI mm mm mm mm mm mm
6 40 4.33 63 7.5 21 4.5 3.4 3 3.7 l 110959
8 36 5.08 70 9 25 6 4.9 3 4.4 l 110960
10 32 5.85 80 11 30 6 4.9 3 5.1 l 104946
1/4 28 7.52 90 12.5 35 8 6.2 3 6.65 l 110020
5/16 24 9.31 90 12.5 35 9 7 3 8.2 l 111619
3/8 24 10.89 100 19 8 6.2 3 9.8 l 110027
1/2 20 14.35 100 14 11 9 3 13.1 l 104951
