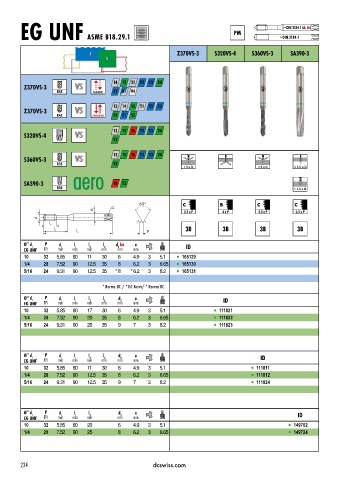

Page 237 - DC_SWISS(Catalogue_TM_ES-EN)

~ DIN 2184-1 (d2 h6)
PM
EG UNF ASME B18.29.1 ~ DIN 2184-1

Z Z370VS 3 S320VS 4 S360VS 3 SA390 3
S

Z370VS-3 VS 14 15 21 22 23 24
R45 CLASSIC 51 61 94

Z370VS-3 VS 13 14 15 21 22 23
R45 SYNCHRO 24 51 52

S320VS-4 VS 13 15 16 22 23 24
52

S360VS-3 VS 13 15 16 22 23 24
R35 52
< 3 x D < 2 x D < 1.5 x D

SA390-3 16 53
R10 < 1.5 x D

C B C C
a
d 2
2.5 x P 4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d h6 a ID
2
EG UNF TPI mm mm mm mm mm mm
10 32 5.85 80 11 30 6 4.9 3 5.1 l 165129
1/4 28 7.52 90 12.5 35 8 6.2 3 6.65 l 165130
5/16 24 9.31 90 12.5 35 * 8 * 6.2 3 8.2 l 165131

* Norme DC / * DC Norm/ * Norma DC

Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID
EG UNF TPI mm mm mm mm mm mm
10 32 5.85 80 17 30 6 4.9 3 5.1 l 111821
1/4 28 7.52 90 20 35 8 6.2 3 6.65 l 111822
5/16 24 9.31 90 20 35 9 7 3 8.2 l 111823

Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID
EG UNF TPI mm mm mm mm mm mm
10 32 5.85 80 11 30 6 4.9 3 5.1 l 111811
1/4 28 7.52 90 12.5 35 8 6.2 3 6.65 l 111812
5/16 24 9.31 90 12.5 35 9 7 3 8.2 l 111824

Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID
EG UNF TPI mm mm mm mm mm
10 32 5.85 80 20 6 4.9 3 5.1 l 149702
1/4 28 7.52 90 25 8 6.2 3 6.65 l 149724
