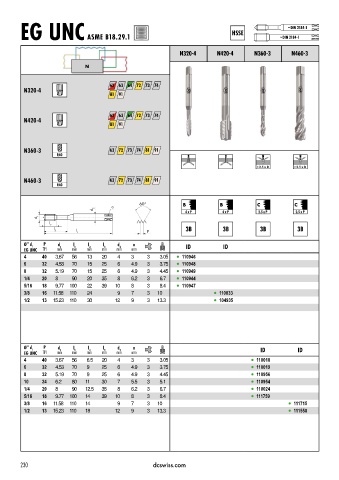

Page 233 - DC_SWISS(Catalogue_TM_ES-EN)

~ DIN 2184-1
HSSE
EG UNC ASME B18.29.1 ~ DIN 2184-1

N320 4 N420 4 N360 3 N460 3

N

62 63 72 73 74
N320-4
81 91

62 63 72 73 74
N420-4
81 91

N360-3 63 72 73 74 81 91
R40

< 2.5 x D < 2.5 x D

N460-3 63 72 73 74 81 91
R40

B B C C
a
d 2
4 x P 4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID
EG UNC TPI mm mm mm mm mm mm
4 40 3.67 56 13 20 4 3 3 3.05 l 110946
6 32 4.53 70 15 25 6 4.9 3 3.75 l 110948
8 32 5.19 70 15 25 6 4.9 3 4.45 l 110949
1/4 20 8 90 20 35 8 6.2 3 6.7 l 110944
5/16 18 9.77 100 22 39 10 8 3 8.4 l 110947
3/8 16 11.58 110 24 9 7 3 10 l 110033
1/2 13 15.23 110 30 12 9 3 13.3 l 104935

Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID
EG UNC TPI mm mm mm mm mm mm
4 40 3.67 56 6.5 20 4 3 3 3.05 l 110018
6 32 4.53 70 9 25 6 4.9 3 3.75 l 110019
8 32 5.19 70 9 25 6 4.9 3 4.45 l 110956
10 24 6.2 80 11 30 7 5.5 3 5.1 l 110954
1/4 20 8 90 12.5 35 8 6.2 3 6.7 l 110024
5/16 18 9.77 100 14 39 10 8 3 8.4 l 111759
3/8 16 11.58 110 14 9 7 3 10 l 111715
1/2 13 15.23 110 18 12 9 3 13.3 l 111558
