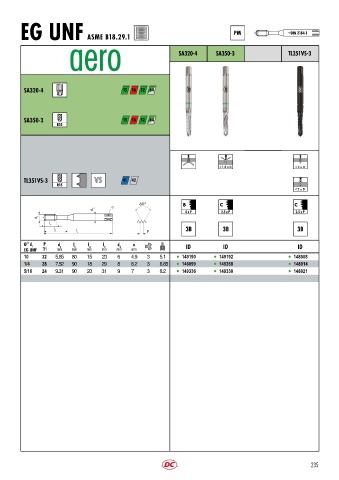

Page 238 - DC_SWISS(Catalogue_TM_ES-EN)
P. 238
PM DIN 2184-1
EG UNF ASME B18.29.1 ~
SA320 4 SA350 3 TL351VS 3
SA320-4 15 16 52
SA350-3 15 16 52
R15
< 1.5 x D < 2 x D
TL351VS-3 VS 41 42
R15
< 2 x D
B C C
a
d 2
4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID
EG UNF TPI mm mm mm mm mm mm
10 32 5.85 80 15 23 6 4.9 3 5.1 l 149190 l 149192 l 148008
1/4 28 7.52 90 18 29 8 6.2 3 6.65 l 146099 l 149268 l 148014
5/16 24 9.31 90 20 31 9 7 3 8.2 l 149336 l 149338 l 148021
