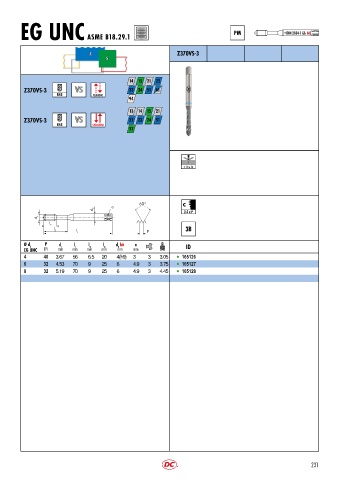

PM DIN 2184-1 (d2 h6)
EG UNC ASME B18.29.1 ~

Z Z370VS 3
S

14 15 21 22
Z370VS-3 VS 23 24 51 61
R45 CLASSIC
94

13 14 15 21
Z370VS-3 VS 22 23 24 51
R45 SYNCHRO
52

< 3 x D

C
a
d 2
2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P d 1 l 1 l 2 l 3 d h6 a ID
2
EG UNC TPI mm mm mm mm mm mm
4 40 3.67 56 6.5 20 4(h9) 3 3 3.05 l 165126
6 32 4.53 70 9 25 6 4.9 3 3.75 l 165127
8 32 5.19 70 9 25 6 4.9 3 4.45 l 165128
