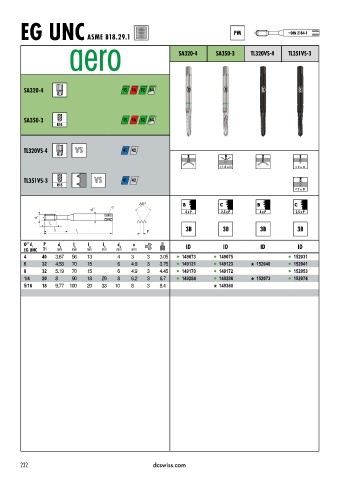

PM DIN 2184-1
EG UNC ASME B18.29.1 ~

SA320 4 SA350 3 TL320VS 4 TL351VS 3

SA320-4 15 16 52

SA350-3 15 16 52
R15

TL320VS-4 VS 41 42

< 1.5 x D < 2 x D

TL351VS-3 VS 41 42
R15
< 2 x D

B C B C
a
d 2
4 x P 2.5 x P 4 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
EG UNC TPI mm mm mm mm mm mm
4 40 3.67 56 13 4 3 3 3.05 l 149073 l 149075 l 152031
6 32 4.53 70 15 6 4.9 3 3.75 l 149121 l 149123 152040 l 152041
8 32 5.19 70 15 6 4.9 3 4.45 l 149170 l 149172 l 152053
1/4 20 8 90 18 29 8 6.2 3 6.7 l 149284 l 149286 152073 l 152074
5/16 18 9.77 100 20 33 10 8 3 8.4 149360
