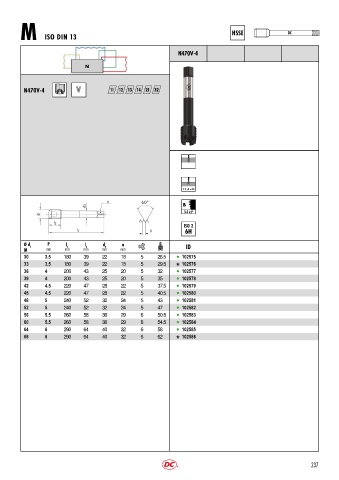

Page 240 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DC
M ISO DIN 13

N470V 4

N

N470V-4 V 11 12 13 14 21 32

< 1.4 x D

B
3.5 x P

P

Ø d 1 P l 1 l 2 d 2 a ID
M mm mm mm mm mm
30 3.5 180 39 22 18 5 26.5 l 102575
33 3.5 180 39 22 18 5 29.5 102576
36 4 200 43 25 20 5 32 l 102577
39 4 200 43 25 20 5 35 l 102578
42 4.5 220 47 28 22 5 37.5 l 102579
45 4.5 220 47 28 22 5 40.5 l 102580
48 5 240 52 32 24 5 43 l 102581
52 5 240 52 32 24 5 47 l 102582
56 5.5 260 58 36 29 6 50.5 l 102583
60 5.5 260 58 36 29 6 54.5 l 102584
64 6 290 64 40 32 6 58 l 102585
68 6 290 64 40 32 6 62 102586
