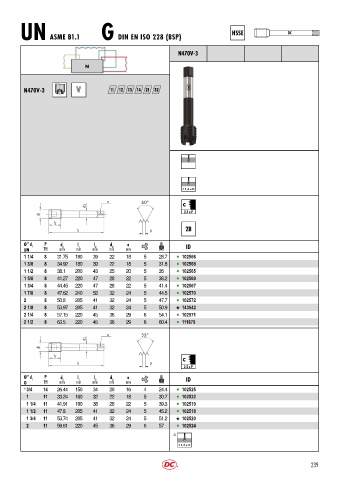

Page 242 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DC
UN ASME B1.1 G DIN EN ISO 228 (BSP)

N470V 3

N

N470V-3 V 11 12 13 14 21 32

< 1.4 x D

C
2.5 x P

P

Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID
UN TPI mm mm mm mm mm
1 1/4 8 31.75 180 39 22 18 5 28.7 l 102566
1 3/8 8 34.92 180 39 22 18 5 31.8 l 102568
1 1/2 8 38.1 200 43 25 20 5 35 l 102565
1 5/8 8 41.27 220 47 28 22 5 38.2 l 102569
1 3/4 8 44.45 220 47 28 22 5 41.4 l 102567
1 7/8 8 47.62 240 52 32 24 5 44.5 l 102570
2 8 50.8 205 41 32 24 5 47.7 l 102572
2 1/8 8 53.97 205 41 32 24 5 50.9 143542
2 1/4 8 57.15 220 45 36 29 6 54.1 l 102571
2 1/2 8 63.5 220 45 36 29 6 60.4 l 111879

C
P
2.5 x P
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID
G TPI mm mm mm mm mm
∆ 3/4 14 26.44 150 34 20 16 4 24.4 l 102525
1 11 33.24 160 32 22 18 5 30.7 l 102522
1 1/4 11 41.91 190 38 28 22 5 39.3 l 102519
1 1/2 11 47.8 205 41 32 24 5 45.2 l 102518
1 3/4 11 53.74 205 41 32 24 5 51.2 102520
2 11 59.61 220 45 36 29 6 57 l 102524
∆

< 1.2 x D
