Page 246 - DC_SWISS(Catalogue_TM_ES-EN)

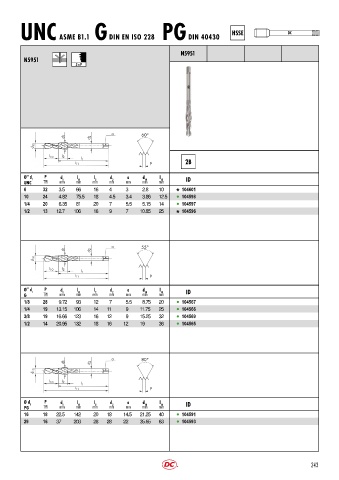

P. 246
HSSE DC
UNC ASME B1.1 G DIN EN ISO 228 PG DIN 40430
N5951
N5951
3 x P
P
Ø’’ d 1 P d 1 l 11 l 2 d 2 a d 10 l 10 ID
UNC TPI mm mm mm mm mm mm mm
6 32 3.5 66 16 4 3 2.8 10 104601
10 24 4.82 75.5 18 4.5 3.4 3.86 12.5 l 104598
1/4 20 6.35 81 20 7 5.5 5.15 14 l 104597
1/2 13 12.7 106 16 9 7 10.85 25 104596
P
Ø’’ d 1 P d 1 l 11 l 2 d 2 a d 10 l 10 ID
G TPI mm mm mm mm mm mm mm
1/8 28 9.72 93 12 7 5.5 8.75 20 l 104567
1/4 19 13.15 106 14 11 9 11.75 25 l 104566
3/8 19 16.66 123 16 12 9 15.25 32 l 104569
1/2 14 20.95 132 18 16 12 19 36 l 104565
P
Ø d 1 P d 1 l 11 l 2 d 2 a d 10 l 10 ID
PG TPI mm mm mm mm mm mm mm
16 18 22.5 142 20 18 14.5 21.25 40 l 104591
29 16 37 203 28 28 22 35.65 63 l 104593
243
