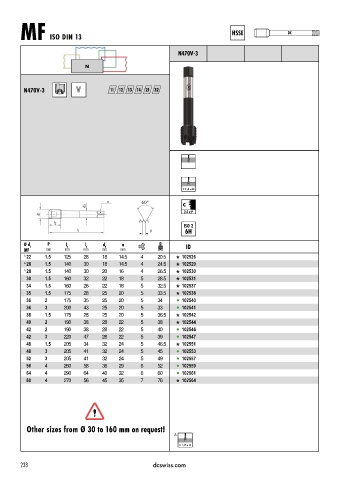

Page 241 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DC
MF ISO DIN 13

N470V 3

N

N470V-3 V 11 12 13 14 21 32

< 1.4 x D

C
2.5 x P

P

Ø d 1 P l 1 l 2 d 2 a ID
MF mm mm mm mm mm
∆ 22 1.5 125 28 18 14.5 4 20.5 102526
∆ 26 1.5 140 30 18 14.5 4 24.5 102529
∆ 28 1.5 140 30 20 16 4 26.5 102530
30 1.5 160 32 22 18 5 28.5 102531
34 1.5 160 26 22 18 5 32.5 102537
35 1.5 175 28 25 20 5 33.5 102538
36 2 175 35 25 20 5 34 l 102540
36 3 200 43 25 20 5 33 l 102541
38 1.5 175 28 25 20 5 36.5 102542
40 2 190 38 28 22 5 38 102544
42 2 190 38 28 22 5 40 l 102546
42 3 220 47 28 22 5 39 l 102547
48 1.5 205 34 32 24 5 46.5 102551
48 3 205 41 32 24 5 45 l 102553
52 3 205 41 32 24 5 49 l 102557
56 4 260 58 36 29 6 52 l 102559
64 4 290 64 40 32 6 60 l 102561
80 4 270 56 45 35 7 76 102564

Other sizes from Ø 30 to 160 mm on request!
∆

< 1.2 x D
