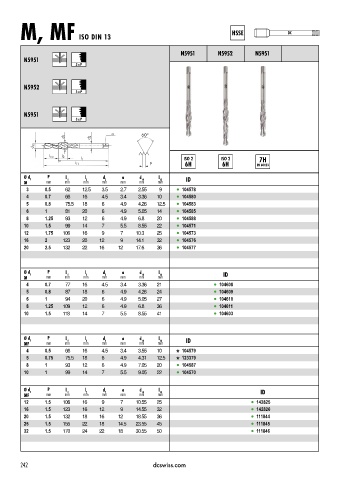

Page 245 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DC
M, MF ISO DIN 13

N5951 N5952 N5951
N5951
3 x P

N5952
3 x P

N5951
3 x P

7H
P EN 60423

Ø d 1 P l 11 l 2 d 2 a d 10 l 10 ID
M mm mm mm mm mm mm mm
3 0.5 62 12.5 3.5 2.7 2.55 9 l 104578
4 0.7 66 16 4.5 3.4 3.36 10 l 104580
5 0.8 75.5 18 6 4.9 4.26 12.5 l 104583
6 1 81 20 6 4.9 5.05 14 l 104585
8 1.25 93 12 6 4.9 6.8 20 l 104588
10 1.5 99 14 7 5.5 8.55 22 l 104571
12 1.75 106 16 9 7 10.3 25 l 104573
16 2 123 20 12 9 14.1 32 l 104576
20 2.5 132 22 16 12 17.6 36 l 104577

Ø d 1 P l 11 l 2 d 2 a d 10 l 10 ID
M mm mm mm mm mm mm mm
4 0.7 77 16 4.5 3.4 3.36 21 l 104608
5 0.8 87 18 6 4.9 4.26 24 l 104609
6 1 94 20 6 4.9 5.05 27 l 104610
8 1.25 109 12 6 4.9 6.8 36 l 104611
10 1.5 118 14 7 5.5 8.55 41 l 104603

Ø d 1 P l 11 l 2 d 2 a d 10 l 10 ID
MF mm mm mm mm mm mm mm
4 0.5 66 16 4.5 3.4 3.55 10 104579
5 0.75 75.5 18 6 4.9 4.31 12.5 123379
8 1 93 12 6 4.9 7.05 20 l 104587
10 1 99 14 7 5.5 9.05 22 l 104570

Ø d 1 P l 11 l 2 d 2 a d 10 l 10 ID
MF mm mm mm mm mm mm mm
12 1.5 106 16 9 7 10.55 25 l 142825
16 1.5 123 16 12 9 14.55 32 l 142826
20 1.5 132 18 16 12 18.55 36 l 111844
25 1.5 155 22 18 14.5 23.55 45 l 111845
32 1.5 170 24 22 18 30.55 50 l 111846

242 dcswiss.com
