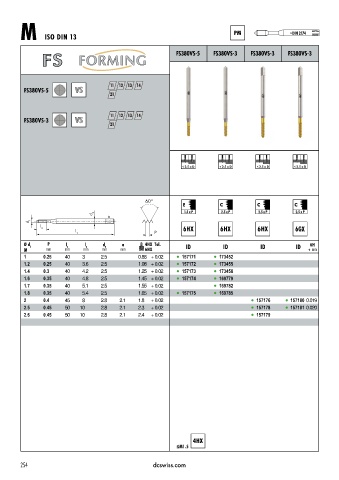

Page 257 - DC_SWISS(Catalogue_TM_ES-EN)

PM DIN 2174
M ISO DIN 13 ~

FS FS380VS 5 FS380VS 3 FS380VS 3 FS380VS 3

11 12 13 14
FS380VS-5 VS
21

FS380VS-3 VS 11 12 13 14
21

< 2.5 x D < 2.5 x D < 2.5 x D < 2.5 x D

C C C
2.5 x P 2.5 x P 2.5 x P
d 2
a
d 1
l 2
l P
1
Ø d 1 P l 1 l 2 d 2 a 4HX Tol. ID ID ID ID 6H
M mm mm mm mm mm 6HX + mm
1 0.25 40 3 2.5 0.88 + 0.02 l 157171 l 173452
1.2 0.25 40 3.6 2.5 1.08 + 0.02 l 157172 l 173455
1.4 0.3 40 4.2 2.5 1.25 + 0.02 l 157173 l 173458
1.6 0.35 40 4.8 2.5 1.45 + 0.02 l 157174 l 169779
1.7 0.35 40 5.1 2.5 1.55 + 0.02 l 169782
1.8 0.35 40 5.4 2.5 1.65 + 0.02 l 157175 l 169785
2 0.4 45 8 2.8 2.1 1.8 + 0.02 l 157176 l 157180 0.019
2.5 0.45 50 10 2.8 2.1 2.3 + 0.02 l 157178 l 157181 0.020
2.6 0.45 50 10 2.8 2.1 2.4 + 0.02 l 157179

≤M1.5

254 dcswiss.com
