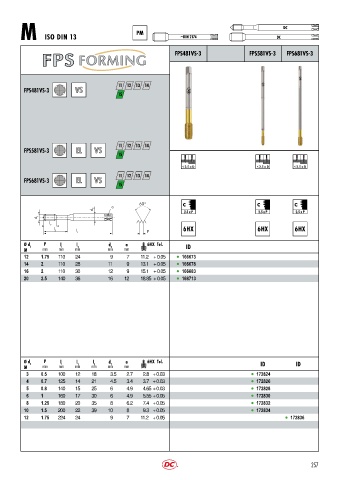

Page 260 - DC_SWISS(Catalogue_TM_ES-EN)

DC
PM
M ISO DIN 13 ~ DIN 2174 DC

FPS FPS481VS 3 FPS581VS 3 FPS681VS 3

11 12 13 14
FPS481VS-3 VS
15

FPS581VS-3 EL VS 11 12 13 14
15

< 2.5 x D < 2.5 x D < 2.5 x D

FPS681VS-3 EL VS 11 12 13 14
15

C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 d 2 a 6HX Tol. ID
M mm mm mm mm mm
12 1.75 110 24 9 7 11.2 + 0.05 l 166673
14 2 110 28 11 9 13.1 + 0.05 l 166678
16 2 110 30 12 9 15.1 + 0.05 l 166683
20 2.5 140 36 16 12 18.85 + 0.05 l 168713

Ø d 1 P l 1 l 2 l 3 d 2 a 6HX Tol. ID ID
M mm mm mm mm mm mm
3 0.5 100 12 18 3.5 2.7 2.8 + 0.03 l 172824
4 0.7 125 14 21 4.5 3.4 3.7 + 0.03 l 172826
5 0.8 140 15 25 6 4.9 4.65 + 0.03 l 172828
6 1 160 17 30 6 4.9 5.55 + 0.05 l 172830
8 1.25 180 20 35 8 6.2 7.4 + 0.05 l 172832
10 1.5 200 22 39 10 8 9.3 + 0.05 l 172834
12 1.75 224 24 9 7 11.2 + 0.05 l 172836

257
