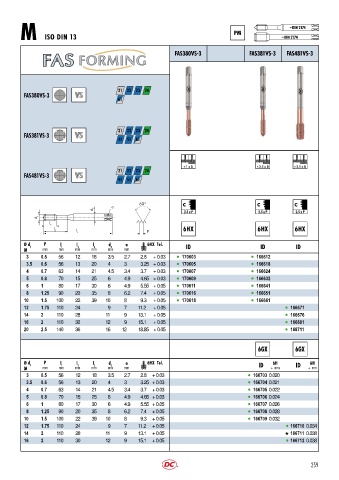

Page 262 - DC_SWISS(Catalogue_TM_ES-EN)

~ DIN 2174
PM
M ISO DIN 13 ~ DIN 2174

FAS FAS380VS 3 FAS381VS 3 FAS481VS 3

21 22 23 24
FAS380VS-3 VS
61

FAS381VS-3 VS 21 22 23 24
41 51 61

< 1 x D < 2.5 x D < 2.5 x D
21 22 23 24
FAS481VS-3 VS
41 51 61

C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a 6HX Tol. ID ID ID
M mm mm mm mm mm mm
3 0.5 56 12 18 3.5 2.7 2.8 + 0.03 l 170603 l 166612
3.5 0.6 56 13 20 4 3 3.25 + 0.03 l 170605 l 166618
4 0.7 63 14 21 4.5 3.4 3.7 + 0.03 l 170607 l 166624
5 0.8 70 15 25 6 4.9 4.65 + 0.03 l 170609 l 166632
6 1 80 17 30 6 4.9 5.55 + 0.05 l 170611 l 166641
8 1.25 90 20 35 8 6.2 7.4 + 0.05 l 170616 l 166651
10 1.5 100 22 39 10 8 9.3 + 0.05 l 170618 l 166661
12 1.75 110 24 9 7 11.2 + 0.05 l 166671
14 2 110 28 11 9 13.1 + 0.05 l 166676
16 2 110 30 12 9 15.1 + 0.05 l 166681
20 2.5 140 36 16 12 18.85 + 0.05 l 168711

Ø d 1 P l 1 l 2 l 3 d 2 a 6HX Tol. ID 6H ID 6H
M mm mm mm mm mm mm + mm + mm
3 0.5 56 12 18 3.5 2.7 2.8 + 0.03 l 166703 0.020
3.5 0.6 56 13 20 4 3 3.25 + 0.03 l 166704 0.021
4 0.7 63 14 21 4.5 3.4 3.7 + 0.03 l 166705 0.022
5 0.8 70 15 25 6 4.9 4.65 + 0.03 l 166706 0.024
6 1 80 17 30 6 4.9 5.55 + 0.05 l 166707 0.026
8 1.25 90 20 35 8 6.2 7.4 + 0.05 l 166708 0.028
10 1.5 100 22 39 10 8 9.3 + 0.05 l 166709 0.032
12 1.75 110 24 9 7 11.2 + 0.05 l 166710 0.034
14 2 110 28 11 9 13.1 + 0.05 166711 0.038
16 2 110 30 12 9 15.1 + 0.05 l 166712 0.038
