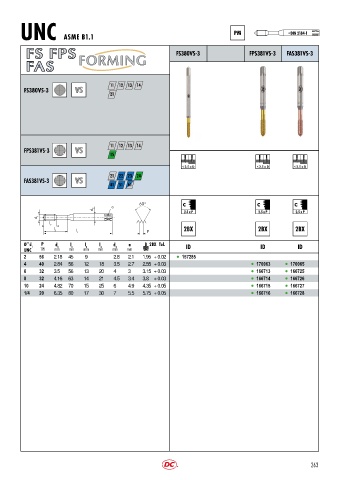

Page 266 - DC_SWISS(Catalogue_TM_ES-EN)

PM DIN 2184-1
UNC ASME B1.1 ~

FS FPS FS380VS 3 FPS381VS 3 FAS381VS 3

FAS

11 12 13 14
FS380VS-3 VS
21

FPS381VS 3 VS 11 12 13 14
15

< 2.5 x D < 2.5 x D < 2.5 x D

FAS381VS-3 VS 21 22 23 24
41 51 61

C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a 2BX Tol. ID ID ID
UNC TPI mm mm mm mm mm mm
2 56 2.18 45 9 2.8 2.1 1.95 + 0.02 l 157285
4 40 2.84 56 12 18 3.5 2.7 2.55 + 0.03 l 170063 l 170065
6 32 3.5 56 13 20 4 3 3.15 + 0.03 l 166713 l 166725
8 32 4.16 63 14 21 4.5 3.4 3.8 + 0.03 l 166714 l 166726
10 24 4.82 70 15 25 6 4.9 4.35 + 0.05 l 166715 l 166727
1/4 20 6.35 80 17 30 7 5.5 5.75 + 0.05 l 166716 l 166728

263
