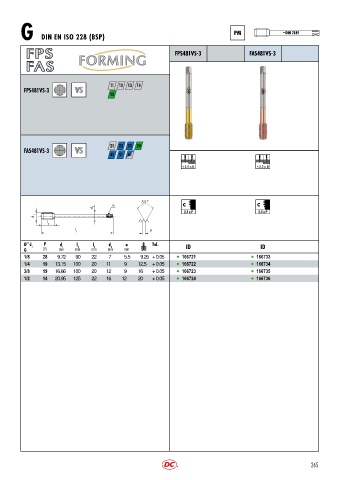

P. 268
PM ~ DIN 2189
G DIN EN ISO 228 (BSP)
FPS FPS481VS 3 FAS481VS 3
FAS
11 12 13 14
FPS481VS-3 VS
15
21 22 23 24
FAS481VS-3 VS
41 51 61
< 2.5 x D < 2.5 x D
a C C
d 2
2.5 x P 2.5 x P
d 1
l 2
l P
1
Ø’’ d 1 P d 1 l 1 l 2 d 2 a Tol. ID ID
G TPI mm mm mm mm mm
1/8 28 9.72 90 22 7 5.5 9.25 + 0.05 l 166721 l 166733
1/4 19 13.15 100 20 11 9 12.5 + 0.05 l 166722 l 166734
3/8 19 16.66 100 20 12 9 16 + 0.05 l 166723 l 166735
1/2 14 20.95 125 22 16 12 20 + 0.05 l 166724 l 166736
265
