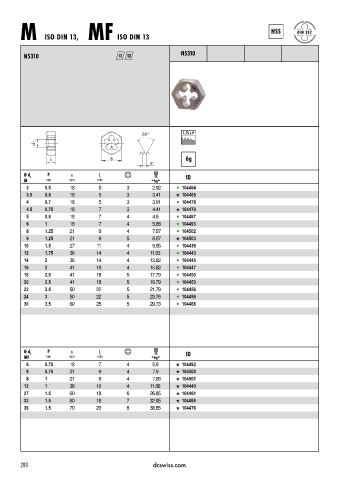

Page 291 - DC_SWISS(Catalogue_TM_ES-EN)

HSS DIN 382
M ISO DIN 13, MF ISO DIN 13

N5310 11 12 N5310

1.75 x P
1.5 x D 1

P

Ø d 1 P s l 1 ID
M mm mm mm  6g 
3 0.5 18 5 3 2.92 l 104464
3.5 0.6 18 5 3 3.41 104465
4 0.7 18 5 3 3.91 l 104478
4.5 0.75 18 7 3 4.41 104479
5 0.8 18 7 4 4.9 l 104487
6 1 18 7 4 5.88 l 104493
8 1.25 21 9 4 7.87 l 104502
9 1.25 21 9 5 8.87 104503
10 1.5 27 11 4 9.85 l 104438
12 1.75 36 14 4 11.83 l 104443
14 2 36 14 4 13.82 l 104445
16 2 41 18 4 15.82 l 104447
18 2.5 41 18 5 17.79 l 104450
20 2.5 41 18 5 19.79 l 104453
22 2.5 50 22 5 21.79 l 104456
24 3 50 22 5 23.76 l 104459
30 3.5 60 25 5 29.73 l 104468

Ø d 1 P s l 1 ID
MF mm mm mm  6g 
6 0.75 18 7 4 5.9 104492
8 0.75 21 9 4 7.9 104500
8 1 21 9 4 7.88 104501
12 1 36 10 4 11.88 104440
27 1.5 60 18 6 26.85 104461
33 1.5 60 18 7 32.85 104469
39 1.5 70 20 8 38.85 104476
