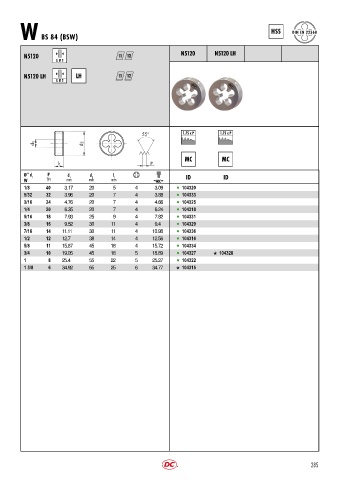

Page 288 - DC_SWISS(Catalogue_TM_ES-EN)

HSS DIN EN 22568
W BS 84 (BSW)

N5120 11 12 N5120 N5120 LH
≥ Ø 3

N5120 LH LH 11 12
≥ Ø 3

1.75 x P 1.75 x P
1.5 x D 1 1.5 x D 1

P

Ø’’ d 1 P d 1 d 2 l 1 ID ID
W TPI mm mm mm  MC 
1/8 40 3.17 20 5 4 3.09 l 104320
5/32 32 3.96 20 7 4 3.88 l 104333
3/16 24 4.76 20 7 4 4.66 l 104325
1/4 20 6.35 20 7 4 6.24 l 104318
5/16 18 7.93 25 9 4 7.82 l 104331
3/8 16 9.52 30 11 4 9.4 l 104329
7/16 14 11.11 30 11 4 10.98 l 104336
1/2 12 12.7 38 14 4 12.56 l 104316
5/8 11 15.87 45 18 4 15.72 l 104334
3/4 10 19.05 45 18 5 18.89 l 104327 104328
1 8 25.4 55 22 5 25.27 l 104322
1 3/8 6 34.92 65 25 6 34.77 104315

285
