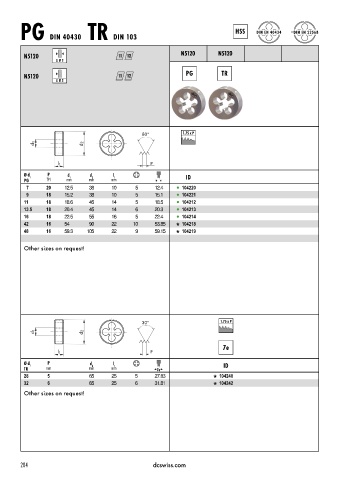

Page 287 - DC_SWISS(Catalogue_TM_ES-EN)

HSS DIN EN 40434 DIN EN 22568
PG DIN 40430 TR DIN 103 ~

N5120 11 12 N5120 N5120
≥ Ø 3

N5120 11 12 PG TR
≥ Ø 3

1.75 x P
1.5 x D 1

P

Ø d 1 P d 1 d 2 l 1 ID
PG TPI mm mm mm  
7 20 12.5 38 10 5 12.4 l 104220
9 18 15.2 38 10 5 15.1 l 104221
11 18 18.6 45 14 5 18.5 l 104212
13.5 18 20.4 45 14 6 20.3 l 104213
16 18 22.5 55 16 5 22.4 l 104214
42 16 54 90 22 10 53.85 104218
48 16 59.3 105 22 9 59.15 104219

Other sizes on request!

1.75 x P
1.5 x D 1

P

Ø d 1 P d 2 l 1 ID
TR mm mm mm  7e 
28 5 65 25 5 27.83 104240
32 6 65 25 6 31.81 104242
Other sizes on request!

284 dcswiss.com
