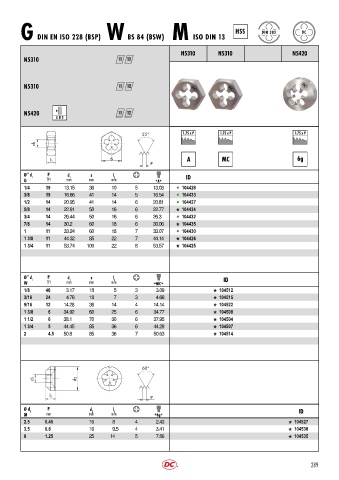

Page 292 - DC_SWISS(Catalogue_TM_ES-EN)

HSS DIN 382 DC
G DIN EN ISO 228 (BSP) W BS 84 (BSW) M ISO DIN 13

N5310 N5310 N5420
N5310 11 12

N5310 11 12

N5420 11 12
≥ Ø 3

1.75 x P 1.75 x P 1.75 x P
1.5 x D 1 1.5 x D 1 1.5 x D 1

P

Ø’’ d 1 P d 1 s l 1 ID
G TPI mm mm mm  
A
1/4 19 13.15 36 10 5 13.03 l 104428
3/8 19 16.66 41 14 5 16.54 l 104433
1/2 14 20.95 41 14 6 20.81 l 104427
5/8 14 22.91 50 16 6 22.77 104434
3/4 14 26.44 50 16 6 26.3 l 104432
7/8 14 30.2 60 18 6 30.06 104435
1 11 33.24 60 18 7 33.07 l 104430
1 3/8 11 44.32 85 22 7 44.14 104426
1 3/4 11 53.74 100 22 8 53.57 104425

Ø’’ d 1 P d 1 s l 1 ID
W TPI mm mm mm  MC 
1/8 40 3.17 18 5 3 3.09 104512
3/16 24 4.76 18 7 3 4.66 104515
9/16 12 14.28 36 14 4 14.14 104522
1 3/8 6 34.92 60 25 6 34.77 104508
1 1/2 6 38.1 70 30 6 37.95 104504
1 3/4 5 44.45 85 36 6 44.28 104507
2 4.5 50.8 85 36 7 50.63 104514

P

Ø d 1 P d 2 l 1 ID
M mm mm mm  6g 
2.5 0.45 16 8 4 2.43 104527
3.5 0.6 16 9.5 4 3.41 104530
8 1.25 25 14 5 7.86 104535
