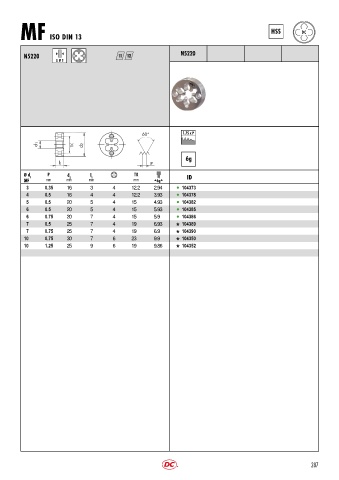

Page 290 - DC_SWISS(Catalogue_TM_ES-EN)

HSS DC
MF ISO DIN 13

N5220 11 12 N5220
≥ Ø 3

1.75 x P
1.5 x D 1

P

Ø d 1 P d 2 l 1 TK ID
MF mm mm mm mm  6g 
3 0.35 16 3 4 12.2 2.94 l 104373
4 0.5 16 4 4 12.2 3.93 l 104378
5 0.5 20 5 4 15 4.93 l 104382
6 0.5 20 5 4 15 5.93 l 104385
6 0.75 20 7 4 15 5.9 l 104386
7 0.5 25 7 4 19 6.93 104389
7 0.75 25 7 4 19 6.9 104390
10 0.75 30 7 6 23 9.9 104350
10 1.25 25 9 6 19 9.86 104352
