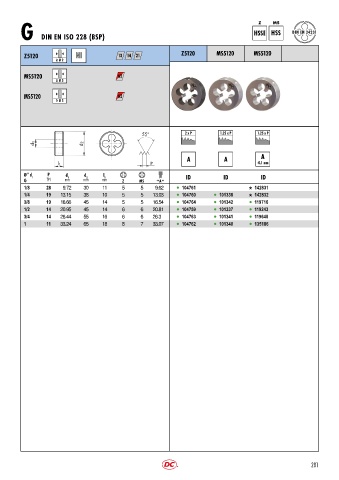

Z MS
HSSE HSS DIN EN 24231
G DIN EN ISO 228 (BSP)

Z5120 NI 13 14 21 Z5120 MS5120 MS5120
≥ Ø 2

MS5120
≥ Ø 3

MS5120
≥ Ø 3

2 x P 1.25 x P 1.25 x P
1.5 x D 1 1.5 x D 1 1.5 x D 1

P

Ø’’ d 1 P d 1 d 2 l 1 ID ID ID
G TPI mm mm mm Z MS  A 
1/8 28 9.72 30 11 5 5 9.62 l 104761 142831
1/4 19 13.15 38 10 5 5 13.03 l 104760 l 101338 142832
3/8 19 16.66 45 14 5 5 16.54 l 104764 l 101342 l 119716
1/2 14 20.95 45 14 6 6 20.81 l 104759 l 101337 l 119243
3/4 14 26.44 55 16 6 6 26.3 l 104763 l 101341 l 119648
1 11 33.24 65 18 8 7 33.07 l 104762 l 101340 l 135186
