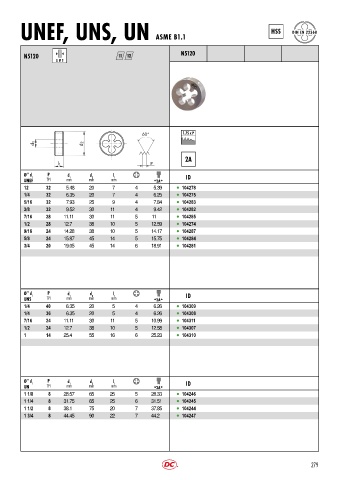

Page 282 - DC_SWISS(Catalogue_TM_ES-EN)

HSS DIN EN 22568
UNEF, UNS, UN ASME B1.1

N5120 11 12 N5120
≥ Ø 3

1.75 x P
1.5 x D 1

P

Ø’’ d 1 P d 1 d 2 l 1 ID
UNEF TPI mm mm mm  2A 
12 32 5.48 20 7 4 5.39 l 104278
1/4 32 6.35 20 7 4 6.25 l 104275
5/16 32 7.93 25 9 4 7.84 l 104283
3/8 32 9.52 30 11 4 9.42 l 104282
7/16 28 11.11 30 11 5 11 l 104285
1/2 28 12.7 38 10 5 12.59 l 104274
9/16 24 14.28 38 10 5 14.17 l 104287
5/8 24 15.87 45 14 5 15.75 l 104284
3/4 20 19.05 45 14 6 18.91 l 104281

Ø’’ d 1 P d 1 d 2 l 1 ID
UNS TPI mm mm mm  2A 
1/4 40 6.35 20 5 4 6.26 l 104309
1/4 36 6.35 20 5 4 6.26 l 104308
7/16 24 11.11 30 11 5 10.99 l 104311
1/2 24 12.7 38 10 5 12.58 l 104307
1 14 25.4 55 16 6 25.23 l 104310

Ø’’ d 1 P d 1 d 2 l 1 ID
UN TPI mm mm mm  2A 
1 1/8 8 28.57 65 25 5 28.33 l 104246
1 1/4 8 31.75 65 25 6 31.51 l 104245
1 1/2 8 38.1 75 20 7 37.85 l 104244
1 3/4 8 44.45 90 22 7 44.2 l 104247
