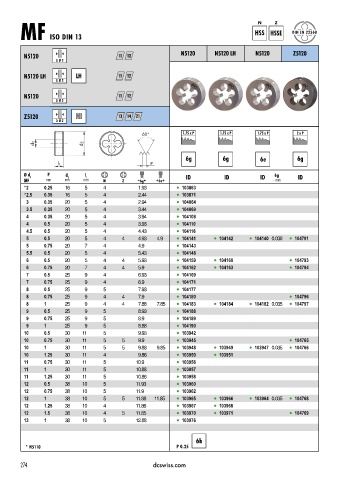

Page 277 - DC_SWISS(Catalogue_TM_ES-EN)

N Z
HSS HSSE DIN EN 22568
MF ISO DIN 13

N5120 11 12 N5120 N5120 LH N5120 Z5120
≥ Ø 3

N5120 LH LH 11 12
≥ Ø 3

N5120 11 12
≥ Ø 3

Z5120 NI 13 14 21
≥ Ø 2

1.75 x P 1.75 x P 1.75 x P 2 x P
1.5 x D 1 1.5 x D 1 1.5 x D 1 1.5 x D 1

P

Ø d 1 P d 2 l 1 ID ID ID 6g ID
MF mm mm mm N Z  6g   6e  - mm
*2 0.25 16 5 4 1.93 l 103863
*2.5 0.35 16 5 4 2.44 l 103871
3 0.35 20 5 4 2.94 l 104064
3.5 0.35 20 5 4 3.44 l 104069
4 0.35 20 5 4 3.94 l 104108
4 0.5 20 5 4 3.93 l 104110
4.5 0.5 20 5 4 4.43 l 104116
5 0.5 20 5 4 4 4.93 4.9 l 104141 l 104142 l 104140 0.030 l 104791
5 0.75 20 7 4 4.9 l 104143
5.5 0.5 20 5 4 5.43 l 104148
6 0.5 20 5 4 4 5.93 l 104159 l 104160 l 104793
6 0.75 20 7 4 4 5.9 l 104162 l 104163 l 104794
7 0.5 25 9 4 6.93 l 104169
7 0.75 25 9 4 6.9 l 104171
8 0.5 25 9 5 7.93 l 104177
8 0.75 25 9 4 4 7.9 l 104180 l 104796
8 1 25 9 4 4 7.88 7.85 l 104183 l 104184 l 104182 0.035 l 104797
9 0.5 25 9 5 8.93 l 104188
9 0.75 25 9 5 8.9 l 104189
9 1 25 9 5 8.88 l 104190
10 0.5 30 11 5 9.93 l 103942
10 0.75 30 11 5 5 9.9 l 103945 l 104765
10 1 30 11 5 5 9.88 9.85 l 103948 l 103949 l 103947 0.035 l 104766
10 1.25 30 11 4 9.86 l 103950 l 103951
11 0.75 30 11 5 10.9 l 103956
11 1 30 11 5 10.88 l 103957
11 1.25 30 11 5 10.86 l 103958
12 0.5 38 10 5 11.93 l 103960
12 0.75 38 10 5 11.9 l 103962
12 1 38 10 5 5 11.88 11.85 l 103965 l 103966 l 103964 0.035 l 104768
12 1.25 38 10 4 11.86 l 103967 l 103968
12 1.5 38 10 4 5 11.85 l 103970 l 103971 l 104769
13 1 38 10 5 12.88 l 103976

* N5110 P 0.25

274 dcswiss.com
