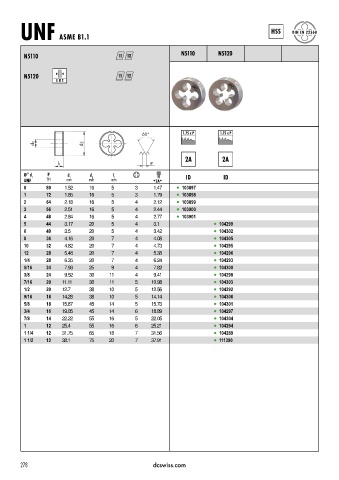

Page 281 - DC_SWISS(Catalogue_TM_ES-EN)

HSS DIN EN 22568
UNF ASME B1.1

N5110 11 12 N5110 N5120

N5120 11 12
≥ Ø 3

1.75 x P 1.75 x P
1.5 x D 1 1.5 x D 1

P

Ø’’ d 1 P d 1 d 2 l 1 ID ID
UNF TPI mm mm mm  2A 
0 80 1.52 16 5 3 1.47 l 103897
1 72 1.85 16 5 3 1.79 l 103898
2 64 2.18 16 5 4 2.12 l 103899
3 56 2.51 16 5 4 2.44 l 103900
4 48 2.84 16 5 4 2.77 l 103901
5 44 3.17 20 5 4 3.1 l 104299
6 40 3.5 20 5 4 3.42 l 104302
8 36 4.16 20 7 4 4.08 l 104305
10 32 4.82 20 7 4 4.73 l 104295
12 28 5.48 20 7 4 5.38 l 104296
1/4 28 6.35 20 7 4 6.24 l 104293
5/16 24 7.93 25 9 4 7.82 l 104300
3/8 24 9.52 30 11 4 9.41 l 104298
7/16 20 11.11 30 11 5 10.98 l 104303
1/2 20 12.7 38 10 5 12.56 l 104292
9/16 18 14.28 38 10 5 14.14 l 104306
5/8 18 15.87 45 14 5 15.73 l 104301
3/4 16 19.05 45 14 6 18.89 l 104297
7/8 14 22.22 55 16 5 22.05 l 104304
1 12 25.4 55 16 6 25.21 l 104294
1 1/4 12 31.75 65 18 7 31.56 l 104289
1 1/2 12 38.1 75 20 7 37.91 l 111390
