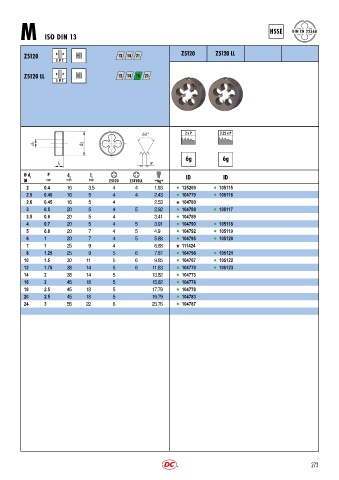

Page 276 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN EN 22568
M ISO DIN 13

Z5120 NI 13 14 21 Z5120 Z5120 LL
≥ Ø 2

Z5120 LL NI 13 14 15 21
≥ Ø 2

2 x P 2.25 x P
1.5 x D 1 1.5 x D 1

P

Ø d 1 P d 2 l 1 ID ID
M mm mm mm Z5120 Z5120LL  6g 
2 0.4 16 3.5 4 4 1.93 l 125269 l 105115
2.5 0.45 16 5 4 4 2.43 l 104779 l 105116
2.6 0.45 16 5 4 2.53 104780
3 0.5 20 5 4 5 2.92 l 104788 l 105117
3.5 0.6 20 5 4 3.41 l 104789
4 0.7 20 5 4 5 3.91 l 104790 l 105118
5 0.8 20 7 4 5 4.9 l 104792 l 105119
6 1 20 7 4 5 5.88 l 104795 l 105120
7 1 25 9 4 6.88 111424
8 1.25 25 9 5 6 7.87 l 104798 l 105121
10 1.5 30 11 5 6 9.85 l 104767 l 105122
12 1.75 38 14 5 6 11.83 l 104770 l 105123
14 2 38 14 5 13.82 l 104773
16 2 45 18 5 15.82 l 104776
18 2.5 45 18 5 17.79 l 104778
20 2.5 45 18 5 19.79 l 104783
24 3 55 22 6 23.76 l 104787
