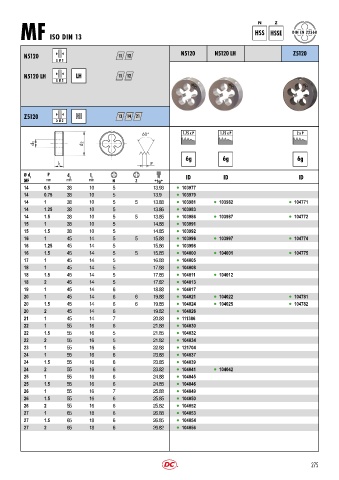

Page 278 - DC_SWISS(Catalogue_TM_ES-EN)

N Z
HSS HSSE DIN EN 22568
MF ISO DIN 13

N5120 11 12 N5120 N5120 LH Z5120
≥ Ø 3

N5120 LH LH 11 12
≥ Ø 3

Z5120 NI 13 14 21
≥ Ø 2

1.75 x P 1.75 x P 2 x P
1.5 x D 1 1.5 x D 1 1.5 x D 1

P

Ø d 1 P d 2 l 1 ID ID ID
MF mm mm mm N Z  6g 
14 0.5 38 10 5 13.93 l 103977
14 0.75 38 10 5 13.9 l 103979
14 1 38 10 5 5 13.88 l 103981 l 103982 l 104771
14 1.25 38 10 5 13.86 l 103983
14 1.5 38 10 5 5 13.85 l 103986 l 103987 l 104772
15 1 38 10 5 14.88 l 103991
15 1.5 38 10 5 14.85 l 103992
16 1 45 14 5 5 15.88 l 103996 l 103997 l 104774
16 1.25 45 14 5 15.86 l 103998
16 1.5 45 14 5 5 15.85 l 104000 l 104001 l 104775
17 1 45 14 5 16.88 l 104005
18 1 45 14 5 17.88 l 104008
18 1.5 45 14 5 17.85 l 104011 l 104012
18 2 45 14 5 17.82 l 104013
19 1 45 14 6 18.88 l 104017
20 1 45 14 6 6 19.88 l 104021 l 104022 l 104781
20 1.5 45 14 6 6 19.85 l 104024 l 104025 l 104782
20 2 45 14 6 19.82 l 104026
21 1 45 14 7 20.88 l 111386
22 1 55 16 6 21.88 l 104030
22 1.5 55 16 5 21.85 l 104032
22 2 55 16 5 21.82 l 104034
23 1 55 16 6 22.88 l 121704
24 1 55 16 6 23.88 l 104037
24 1.5 55 16 6 23.85 l 104039
24 2 55 16 6 23.82 l 104041 l 104042
25 1 55 16 6 24.88 l 104045
25 1.5 55 16 6 24.85 l 104046
26 1 55 16 7 25.88 l 104049
26 1.5 55 16 6 25.85 l 104050
26 2 55 16 6 25.82 l 104052
27 1 65 18 6 26.88 l 104053
27 1.5 65 18 6 26.85 l 104054
27 2 65 18 6 26.82 l 104056

275
