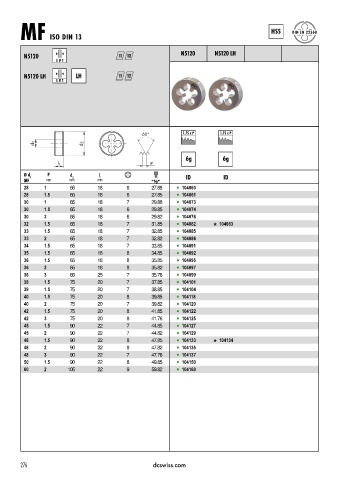

Page 279 - DC_SWISS(Catalogue_TM_ES-EN)

HSS DIN EN 22568
MF ISO DIN 13

N5120 11 12 N5120 N5120 LH
≥ Ø 3

N5120 LH LH 11 12
≥ Ø 3

1.75 x P 1.75 x P
1.5 x D 1 1.5 x D 1

P

Ø d 1 P d 2 l 1 ID ID
MF mm mm mm  6g 
28 1 65 18 6 27.88 l 104060
28 1.5 65 18 6 27.85 l 104061
30 1 65 18 7 29.88 l 104073
30 1.5 65 18 6 29.85 l 104074
30 2 65 18 6 29.82 l 104076
32 1.5 65 18 7 31.85 l 104082 104083
33 1.5 65 18 7 32.85 l 104085
33 2 65 18 7 32.82 l 104086
34 1.5 65 18 7 33.85 l 104091
35 1.5 65 18 8 34.85 l 104092
36 1.5 65 18 8 35.85 l 104095
36 2 65 18 8 35.82 l 104097
36 3 65 25 7 35.76 l 104099
38 1.5 75 20 7 37.85 l 104101
39 1.5 75 20 7 38.85 l 104104
40 1.5 75 20 8 39.85 l 104118
40 2 75 20 7 39.82 l 104120
42 1.5 75 20 8 41.85 l 104122
42 3 75 20 8 41.76 l 104125
45 1.5 90 22 7 44.85 l 104127
45 2 90 22 7 44.82 l 104129
48 1.5 90 22 8 47.85 l 104133 104134
48 2 90 22 8 47.82 l 104135
48 3 90 22 7 47.76 l 104137
50 1.5 90 22 8 49.85 l 104150
60 2 105 22 9 59.82 l 104168
