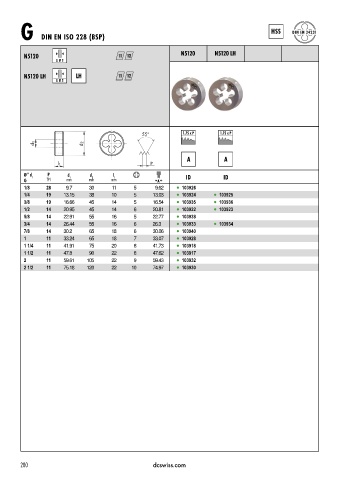

Page 283 - DC_SWISS(Catalogue_TM_ES-EN)

HSS DIN EN 24231
G DIN EN ISO 228 (BSP)

N5120 11 12 N5120 N5120 LH
≥ Ø 3

N5120 LH LH 11 12
≥ Ø 3

1.75 x P 1.75 x P
1.5 x D 1 1.5 x D 1

P

Ø’’ d 1 P d 1 d 2 l 1 ID ID
G TPI mm mm mm  A 
1/8 28 9.7 30 11 5 9.62 l 103926
1/4 19 13.15 38 10 5 13.03 l 103924 l 103925
3/8 19 16.66 45 14 5 16.54 l 103935 l 103936
1/2 14 20.95 45 14 6 20.81 l 103922 l 103923
5/8 14 22.91 55 16 5 22.77 l 103938
3/4 14 26.44 55 16 6 26.3 l 103933 l 103934
7/8 14 30.2 65 18 6 30.06 l 103940
1 11 33.24 65 18 7 33.07 l 103928
1 1/4 11 41.91 75 20 8 41.73 l 103918
1 1/2 11 47.8 90 22 8 47.62 l 103917
2 11 59.61 105 22 9 59.43 l 103932
2 1/2 11 75.18 120 22 10 74.97 l 103930
