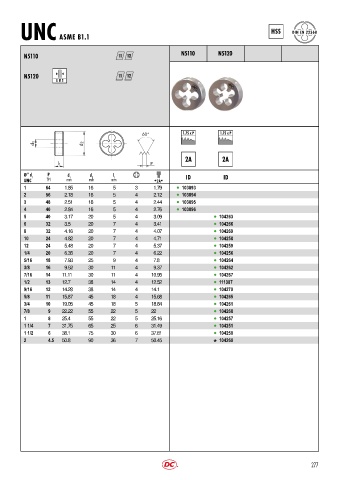

Page 280 - DC_SWISS(Catalogue_TM_ES-EN)

HSS DIN EN 22568
UNC ASME B1.1

N5110 11 12 N5110 N5120

N5120 11 12
≥ Ø 3

1.75 x P 1.75 x P
1.5 x D 1 1.5 x D 1

P

Ø’’ d 1 P d 1 d 2 l 1 ID ID
UNC TPI mm mm mm  2A 
1 64 1.85 16 5 3 1.79 l 103893
2 56 2.18 16 5 4 2.12 l 103894
3 48 2.51 16 5 4 2.44 l 103895
4 40 2.84 16 5 4 2.76 l 103896
5 40 3.17 20 5 4 3.09 l 104263
6 32 3.5 20 7 4 3.41 l 104266
8 32 4.16 20 7 4 4.07 l 104269
10 24 4.82 20 7 4 4.71 l 104258
12 24 5.48 20 7 4 5.37 l 104259
1/4 20 6.35 20 7 4 6.22 l 104256
5/16 18 7.93 25 9 4 7.8 l 104264
3/8 16 9.52 30 11 4 9.37 l 104262
7/16 14 11.11 30 11 4 10.95 l 104267
1/2 13 12.7 38 14 4 12.52 l 111387
9/16 12 14.28 38 14 4 14.1 l 104270
5/8 11 15.87 45 18 4 15.68 l 104265
3/4 10 19.05 45 18 5 18.84 l 104261
7/8 9 22.22 55 22 5 22 l 104268
1 8 25.4 55 22 5 25.16 l 104257
1 1/4 7 31.75 65 25 6 31.49 l 104251
1 1/2 6 38.1 75 30 6 37.81 l 104250
2 4.5 50.8 90 36 7 50.45 104260

277
