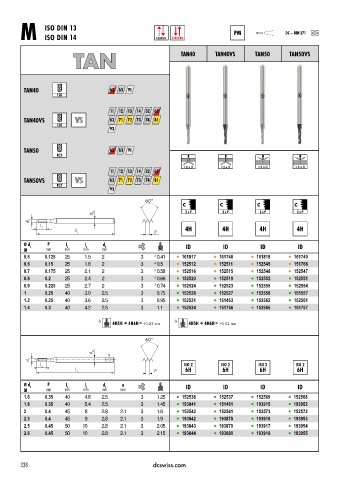

Page 341 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 13
M ISO DIN 14 CLASSIC SYNCHRO PM DC – DIN 371

TAN TAN40 TAN40VS TAN50 TAN50VS

TAN40 62 63 91
L20

11 12 13 14 32 62
TAN40VS VS 63 71 72 73 74 81
L20
93

TAN50 62 63 91
R25
< 2 x D < 2 x D < 2 x D < 2 x D
11 12 13 14 32 62
TAN50VS VS 63 71 72 73 74 81
R25
93

C C C C
d 2 2 x P 2 x P 2 x P 2 x P
d 1
l
2 4H 4H 4H 4H
l
1 P
Ø d 1 P l 1 l 2 d 2 ID ID ID ID
M mm mm mm mm
0.5 0.125 25 1.5 2 3 ∆ 0.41 l 161817 l 161748 l 161818 l 161749
0.6 0.15 25 1.8 2 3 ∆ 0.5 l 152512 l 152511 l 152545 l 151766
0.7 0.175 25 2.1 2 3 ∆ 0.58 l 152516 l 152515 l 152548 l 152547
0.8 0.2 25 2.4 2 3 ∆ 0.66 l 152520 l 152519 l 152552 l 152551
0.9 0.225 25 2.7 2 3 ∆ 0.74 l 152524 l 152523 l 152555 l 152554
1 0.25 40 3.0 2.5 3 0.75 l 152528 l 152527 l 152558 l 151557
1.2 0.25 40 3.6 2.5 3 0.95 l 152531 l 151463 l 152562 l 152561
1.4 0.3 40 4.2 2.5 3 1.1 l 152534 l 151756 l 152565 l 151757

∆ ∆
4H5H 4H6H = +0.02 mm 4H5H 4H6H = +0.02 mm

d 2 a
d 1
l 2
l P
1

Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
M mm mm mm mm mm
1.6 0.35 40 4.8 2.5 3 1.25 l 152538 l 152537 l 152569 l 152568
1.8 0.35 40 5.4 2.5 3 1.45 l 193841 l 151461 l 193915 l 193952
2 0.4 45 8 2.8 2.1 3 1.6 l 152542 l 152541 l 152573 l 152572
2.3 0.4 45 9 2.8 2.1 3 1.9 l 193842 l 193878 l 193916 l 193953
2.5 0.45 50 10 2.8 2.1 3 2.05 l 193843 l 193879 l 193917 l 193954
2.6 0.45 50 10 2.8 2.1 3 2.15 l 193844 l 193880 l 193918 l 193955
