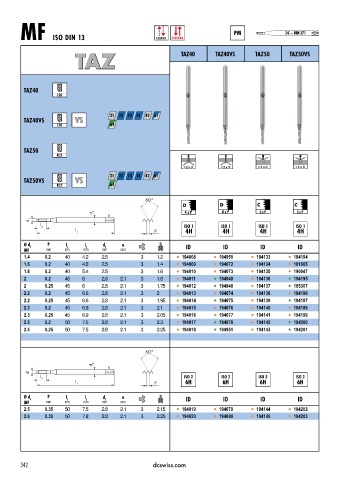

Page 345 - DC_SWISS(Catalogue_TM_ES-EN)

PM DC – DIN 371
MF ISO DIN 13 CLASSIC SYNCHRO

TAZ TAZ40 TAZ40VS TAZ50 TAZ50VS

TAZ40
L20

TAZ40VS VS 21 22 23 41 42 61
L20

TAZ50
R25
< 2 x D < 2 x D < 2 x D < 2 x D

TAZ50VS VS 21 22 23 41 42 61
R25

D D C C
d 2 a 4 x P 4 x P 2 x P 2 x P
d 1
l 2
l P
1
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
MF mm mm mm mm mm
1.4 0.2 40 4.2 2.5 3 1.2 l 194008 l 194950 l 194133 l 194194
1.6 0.2 40 4.8 2.5 3 1.4 l 194009 l 194072 l 194134 l 181665
1.8 0.2 40 5.4 2.5 3 1.6 l 194010 l 194073 l 194135 l 190047
2 0.2 45 6 2.8 2.1 3 1.8 l 194011 l 194949 l 194136 l 194195
2 0.25 45 6 2.8 2.1 3 1.75 l 194012 l 194948 l 194137 l 185307
2.2 0.2 45 6.6 2.8 2.1 3 2 l 194013 l 194074 l 194138 l 194196
2.2 0.25 45 6.6 2.8 2.1 3 1.95 l 194014 l 194075 l 194139 l 194197
2.3 0.2 45 6.9 2.8 2.1 3 2.1 l 194015 l 194076 l 194140 l 194198
2.3 0.25 45 6.9 2.8 2.1 3 2.05 l 194016 l 194077 l 194141 l 194199
2.5 0.2 50 7.5 2.8 2.1 3 2.3 l 194017 l 194078 l 194142 l 194200
2.5 0.25 50 7.5 2.8 2.1 3 2.25 l 194018 l 194951 l 194143 l 194201

d 2 a
d 1
l
2
l 1 P
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
MF mm mm mm mm mm
2.5 0.35 50 7.5 2.8 2.1 3 2.15 l 194019 l 194079 l 194144 l 194202
2.6 0.35 50 7.8 2.8 2.1 3 2.25 l 194020 l 194080 l 194145 l 194203

342 dcswiss.com
