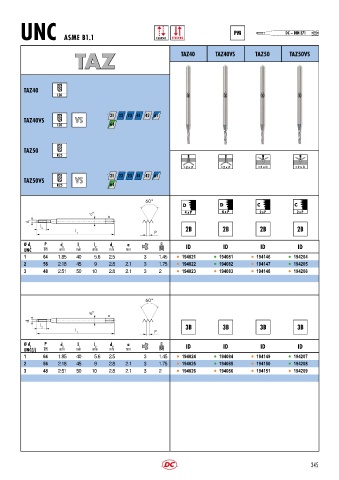

Page 348 - DC_SWISS(Catalogue_TM_ES-EN)

PM DC – DIN 371
UNC ASME B1.1 CLASSIC SYNCHRO

TAZ TAZ40 TAZ40VS TAZ50 TAZ50VS

TAZ40
L20

TAZ40VS VS 21 22 23 41 42 61
L20

TAZ50
R25
< 2 x D < 2 x D < 2 x D < 2 x D

TAZ50VS VS 21 22 23 41 42 61
R25

D D C C
4 x P 4 x P 2 x P 2 x P
d 2
a
d 1
l 2
l P
1
Ø d 1 P d 1 l 1 l 2 d 2 a ID ID ID ID
UNC TPI mm mm mm mm mm
1 64 1.85 40 5.6 2.5 3 1.45 l 194021 l 194081 l 194146 l 194204
2 56 2.18 45 9 2.8 2.1 3 1.75 l 194022 l 194082 l 194147 l 194205
3 48 2.51 50 10 2.8 2.1 3 2 l 194023 l 194083 l 194148 l 194206

d 2 a
d 1
l 2
l P
1
Ø d 1 P d 1 l 1 l 2 d 2 a ID ID ID ID
UNC(J) TPI mm mm mm mm mm
1 64 1.85 40 5.6 2.5 3 1.45 l 194024 l 194084 l 194149 l 194207
2 56 2.18 45 9 2.8 2.1 3 1.75 l 194025 l 194085 l 194150 l 194208
3 48 2.51 50 10 2.8 2.1 3 2 l 194026 l 194086 l 194151 l 194209

345
