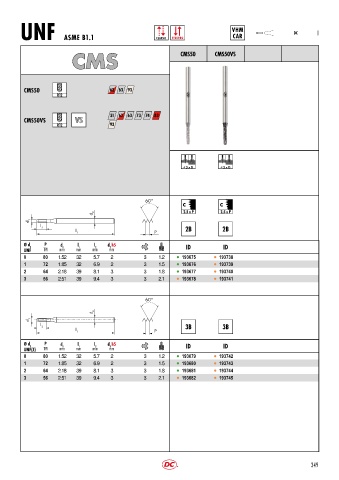

P. 352
UNF ASME B1.1 CLASSIC SYNCHRO VHM DC
CAR
CMS CMS50 CMS50VS
CMS50 62 63 93
R12
CMS50VS VS 31 62 63 73 74 83
R12 93
< 3 x D < 3 x D
C C
2.5 x P 2.5 x P
d 2
d 1
l
2
l
1 P
Ø d 1 P d 1 l 1 l 2 d h5 ID ID
2
UNF TPI mm mm mm mm
0 80 1.52 32 5.7 2 3 1.2 l 193675 l 193738
1 72 1.85 32 6.9 2 3 1.5 l 193676 l 193739
2 64 2.18 39 8.1 3 3 1.8 l 193677 l 193740
3 56 2.51 39 9.4 3 3 2.1 l 193678 l 193741
d 2
d 1
l 2
l P
1
Ø d 1 P d 1 l 1 l 2 d h5 ID ID
2
UNF(J) TPI mm mm mm mm
0 80 1.52 32 5.7 2 3 1.2 l 193679 l 193742
1 72 1.85 32 6.9 2 3 1.5 l 193680 l 193743
2 64 2.18 39 8.1 3 3 1.8 l 193681 l 193744
3 56 2.51 39 9.4 3 3 2.1 l 193682 l 193745
349
