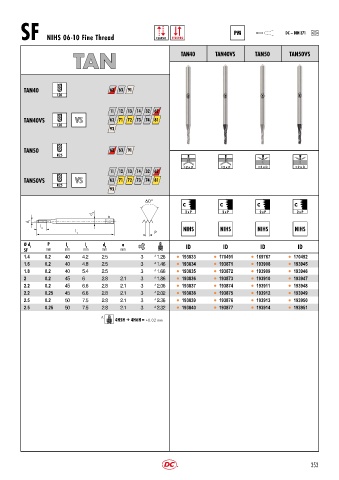

Page 356 - DC_SWISS(Catalogue_TM_ES-EN)

PM DC – DIN 371
SF NIHS 06-10 Fine Thread CLASSIC SYNCHRO

TAN TAN40 TAN40VS TAN50 TAN50VS

TAN40 62 63 91
L20

11 12 13 14 32 62
TAN40VS VS 63 71 72 73 74 81
L20
93

TAN50 62 63 91
R25
< 2 x D < 2 x D < 2 x D < 2 x D
11 12 13 14 32 62
TAN50VS VS 63 71 72 73 74 81
R25
93

C C C C
2 x P 2 x P 2 x P 2 x P
d 2
a
d 1
l 2
l P NIHS NIHS NIHS NIHS
1
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
SF mm mm mm mm mm
1.4 0.2 40 4.2 2.5 3 ∆ 1.26 l 193833 l 170491 l 169767 l 170492
1.6 0.2 40 4.8 2.5 3 ∆ 1.46 l 193834 l 193871 l 193908 l 193945
1.8 0.2 40 5.4 2.5 3 ∆ 1.66 l 193835 l 193872 l 193909 l 193946
2 0.2 45 6 2.8 2.1 3 ∆ 1.86 l 193836 l 193873 l 193910 l 193947
2.2 0.2 45 6.6 2.8 2.1 3 ∆ 2.06 l 193837 l 193874 l 193911 l 193948
2.2 0.25 45 6.6 2.8 2.1 3 ∆ 2.02 l 193838 l 193875 l 193912 l 193949
2.5 0.2 50 7.5 2.8 2.1 3 ∆ 2.36 l 193839 l 193876 l 193913 l 193950
2.5 0.25 50 7.5 2.8 2.1 3 ∆ 2.32 l 193840 l 193877 l 193914 l 193951

∆
4H5H 4H6H = +0.02 mm
