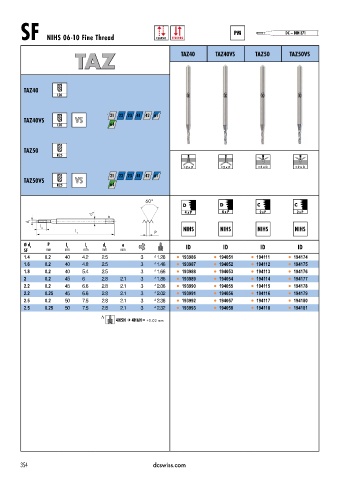

Page 357 - DC_SWISS(Catalogue_TM_ES-EN)

PM DC – DIN 371
SF NIHS 06-10 Fine Thread CLASSIC SYNCHRO

TAZ TAZ40 TAZ40VS TAZ50 TAZ50VS

TAZ40
L20

TAZ40VS VS 21 22 23 41 42 61
L20

TAZ50
R25
< 2 x D < 2 x D < 2 x D < 2 x D

TAZ50VS VS 21 22 23 41 42 61
R25

D D C C
4 x P 4 x P 2 x P 2 x P
d 2
a
d 1
l 2
l P NIHS NIHS NIHS NIHS
1
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
SF mm mm mm mm mm
1.4 0.2 40 4.2 2.5 3 ∆ 1.26 l 193986 l 194051 l 194111 l 194174
1.6 0.2 40 4.8 2.5 3 ∆ 1.46 l 193987 l 194052 l 194112 l 194175
1.8 0.2 40 5.4 2.5 3 ∆ 1.66 l 193988 l 194053 l 194113 l 194176
2 0.2 45 6 2.8 2.1 3 ∆ 1.86 l 193989 l 194054 l 194114 l 194177
2.2 0.2 45 6.6 2.8 2.1 3 ∆ 2.06 l 193990 l 194055 l 194115 l 194178
2.2 0.25 45 6.6 2.8 2.1 3 ∆ 2.02 l 193991 l 194056 l 194116 l 194179
2.5 0.2 50 7.5 2.8 2.1 3 ∆ 2.36 l 193992 l 194057 l 194117 l 194180
2.5 0.25 50 7.5 2.8 2.1 3 ∆ 2.32 l 193993 l 194058 l 194118 l 194181
∆
4H5H 4H6H = +0.02 mm
