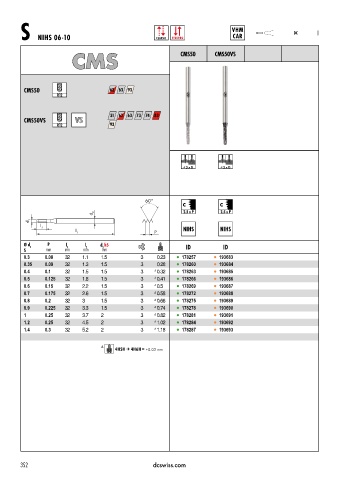

Page 355 - DC_SWISS(Catalogue_TM_ES-EN)

VHM DC
S NIHS 06-10 CLASSIC SYNCHRO CAR

CMS CMS50 CMS50VS

CMS50 62 63 93
R12

CMS50VS VS 31 62 63 73 74 83
R12 93

< 3 x D < 3 x D

C C
2.5 x P 2.5 x P
d 2
d 1
l
2 NIHS NIHS
l
1 P
Ø d 1 P l 1 l 2 d h5 ID ID
2
S mm mm mm mm
0.3 0.08 32 1.1 1.5 3 0.23 l 178257 l 193683
0.35 0.09 32 1.3 1.5 3 0.28 l 178260 l 193684
0.4 0.1 32 1.5 1.5 3 ∆ 0.32 l 178263 l 193685
0.5 0.125 32 1.8 1.5 3 ∆ 0.41 l 178266 l 193686
0.6 0.15 32 2.2 1.5 3 ∆ 0.5 l 178269 l 193687
0.7 0.175 32 2.6 1.5 3 ∆ 0.58 l 178272 l 193688
0.8 0.2 32 3 1.5 3 ∆ 0.66 l 178275 l 193689
0.9 0.225 32 3.3 1.5 3 ∆ 0.74 l 178278 l 193690
1 0.25 32 3.7 2 3 ∆ 0.82 l 178281 l 193691
1.2 0.25 32 4.5 2 3 ∆ 1.02 l 178284 l 193692
1.4 0.3 32 5.2 2 3 ∆ 1.18 l 178287 l 193693

∆
4H5H 4H6H = +0.02 mm
